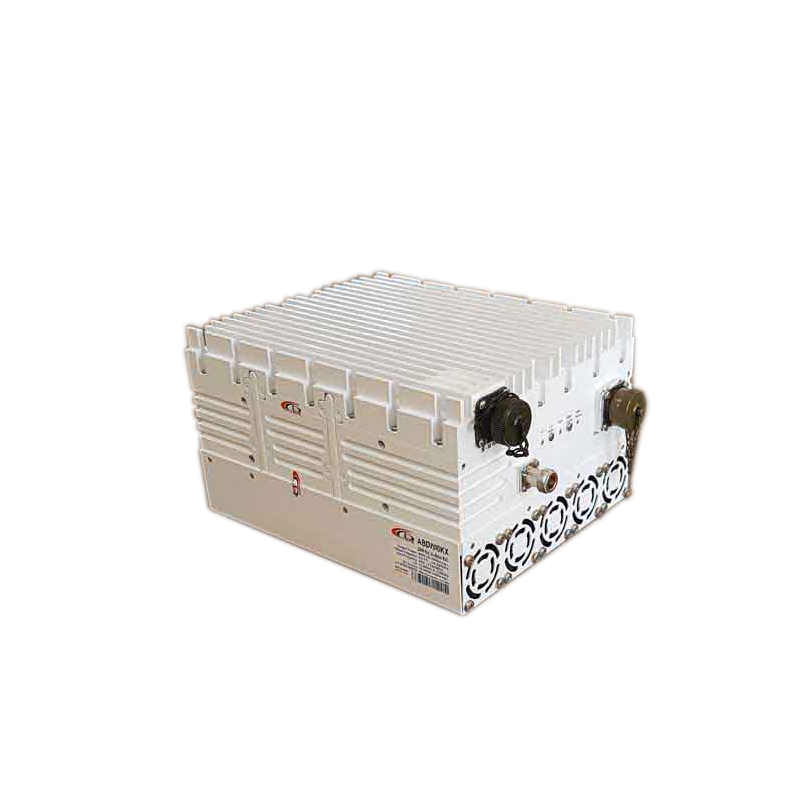

Actox ABDF150KX / ABDF150KXF

Actox ABDF150KX / ABDF150KXF – 150W Full 12.75–14.5 GHz Ku-Band BUC

This Special 150W Dual Ku-Band Block Up Converter is based on GaN technology, has incomparable low power consumption, double switchable L.O., field-exchangeable connector, auto-sensing and controllable internal 10 MHz reference option, and auto-ranging 90-240 VAC powering features make this unit universal for any Ku-Band application. M&C via combined RS-232/485, Ethernet control (HTTP and SNMP) and optional FSK capability enables troubleshooting, monitoring and controlling the BUC

Key Features

RF Frequency: 12.75 – 14.5 GHz

Output Power: 150W (+51.76 dBm min.) 56W (+ 47.48 dBm min.) P-Linear

Double L.O. (switchable 11.8 & 12.8 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (1070W max.)

Auto-ranging powering option 90 - 240 VDC

Extreme P-Out GaN linearity (47 dBm)

Digital temperature compensation

Field-exchangeable (F/N) IF connector

Internal auto-sensing and controllable 10MHz high stability reference (optional)

Built-in redundancy option

Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

RoHS compliant

Mechanical & Environmental

Dimensions: 240 × 202.4 × 139.2 mm

Weight: 8.5 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
