Actox ABA2KXL / ABA2KXLF
Extended Low Ku-band 2W mini-BUC
• RF Frequency: 12.75 to 13.5 GHz
• IF Frequency: 950 to 1700 MHz
• LO Frequency: 11.8 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +33 dBm min.
Security policy
Delivery policy
Return policy

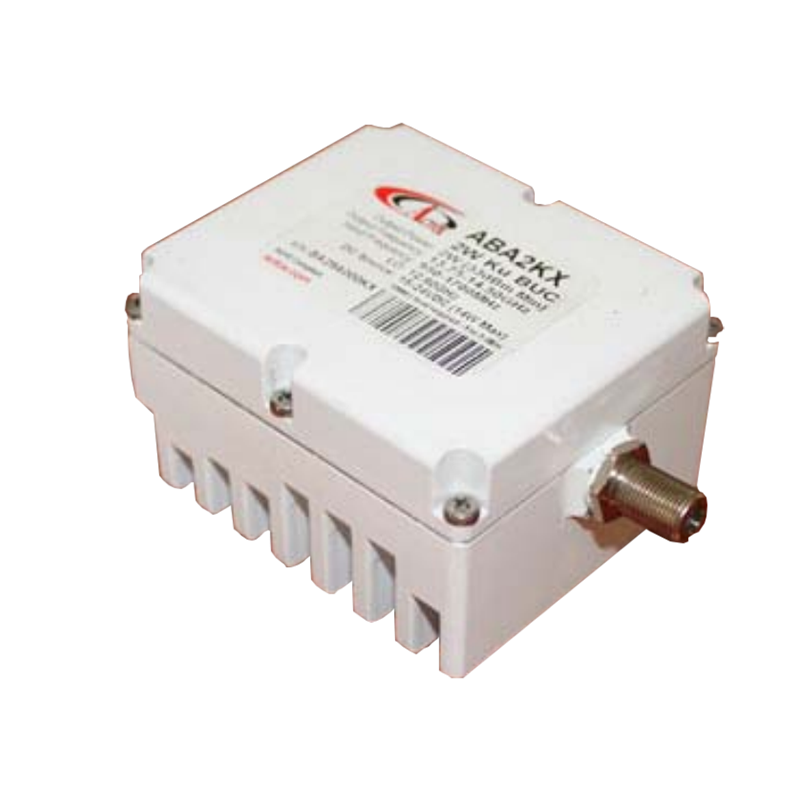

Actox ABA2KXL / ABA2KXLF – 2W Extended 12.75–13.5 GHz Low Ku-Band Mini BUC
This smallest and lightest 2W L-To Low Ku-Band Block Up Converter is based on GaN technology and is designed to be mounted directly on the feed horn. High power efficiency resulting in low current (<1 amps) consumption allows users to pass DC supply voltage via IF cable. The unit is ideal for network and point to point, data distribution, portable and emergency applications.
Key Features
RF Frequency: 12.75 – 13.5 GHz
Output Power: 2W (+33 dBm min.)
Local oscillator: 11.8 GHz
IF Frequency: 950 – 1700 MHz
GaN technology for high efficiency and reliability
Industry’s lowest power consumption (14W max.)
Smallest package size and weight
Powered through IF cable
High power efficiency (2W min.)
RoHS compliant
Mechanical & Environmental
Dimensions: 100.5 × 68 × 46 mm
Weight: 0.45 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABA2KXL, ABA2KXLF
- Transmit Band
- 12.75 - 13.50 GHz
- Power Output
- 2W
Specific References
Extended Low Ku-band 2W mini-BUC
• RF Frequency: 12.75 to 13.5 GHz
• IF Frequency: 950 to 1700 MHz
• LO Frequency: 11.8 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +33 dBm min.
