Actox ABA4SKXL / ABA4SKXLF
Extended Low Ku-band 4W Super mini-BUC
• RF Frequency: 12.75 to 13.5 GHz
• IF Frequency: 950 to 1700 MHz
• LO Frequency: 11.8 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +36 dBm min.
Security policy
Delivery policy
Return policy

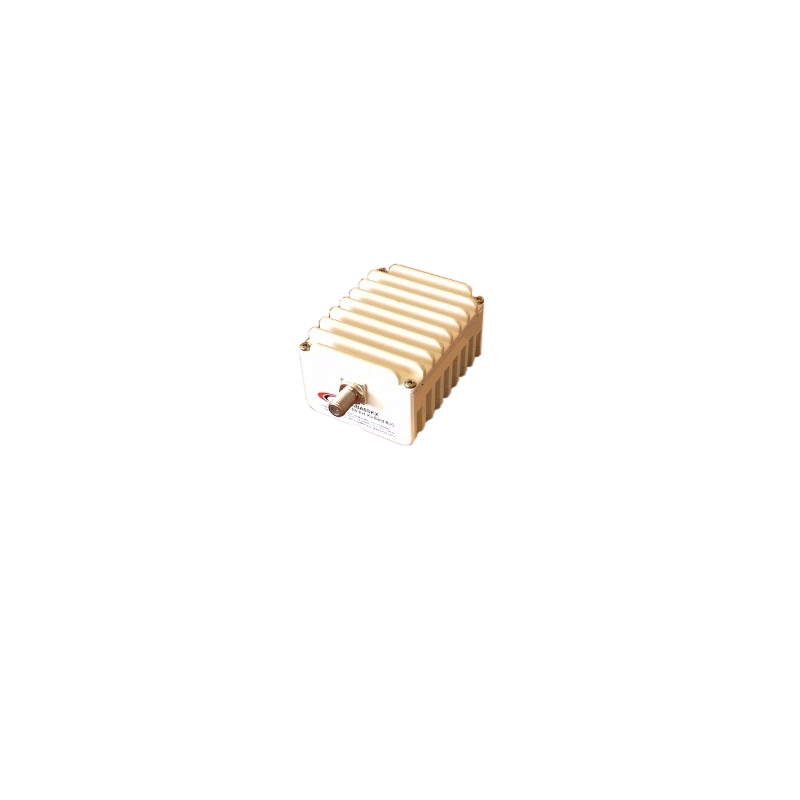

Actox ABA4SKXL / ABA4SKXLF – 4W Extended 12.75–13.5 GHz Low Ku-Band Super Mini BUC
This smallest and lightest 4W L-To Low Ku-Band Block Up Converter is based on GaN technology and is designed to be mounted directly on the feed horn. High power efficiency resulting in low current (< 1 amps) consumption allows the use of this BUC with any modem without an external power supply.
Key Features
RF Frequency: 12.75 – 13.5 GHz
Output Power: 4W (+36 dBm min.)
Local oscillator: 11.8 GHz
IF Frequency: 950 – 1700 MHz
GaN technology for high efficiency and reliability
Industry’s lowest power consumption (19W max.)
Smallest package size and weight
Powered through IF cable
High power efficiency
RoHS compliant
Mechanical & Environmental
Dimensions: 84 × 68 × 49.5 mm
Weight: 0.34 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABA4SKXL, ABA4SKXLF
- Transmit Band
- 12.75 - 13.50 GHz
- Power Output
- 4W
Specific References
Extended Low Ku-band 4W Super mini-BUC
• RF Frequency: 12.75 to 13.5 GHz
• IF Frequency: 950 to 1700 MHz
• LO Frequency: 11.8 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +36 dBm min.
