Actox ABE6KXHLM / ABE6KXHLMF

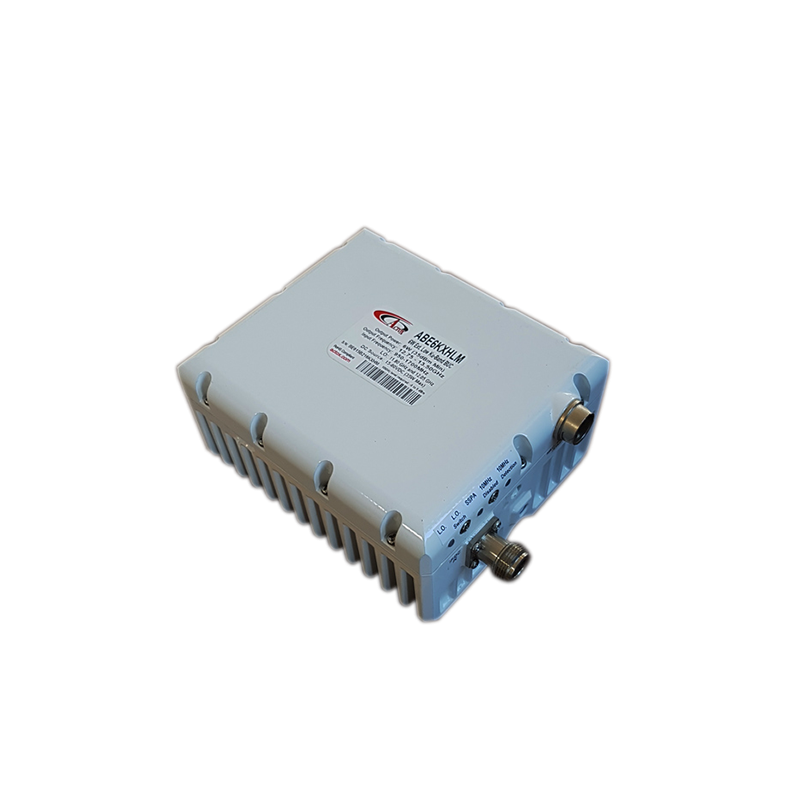

Actox ABE6KXHLM / ABE6KXHLMF – 6W 12.75–13.5 GHz Low Ku-Band BUC

This smallest and lightest 6W L-To Low Ku-Band Block Up Converter is based on GaN technology. Double L.O. and field-exchangeable connectors make the unit universal for any Low Ku-Band application. Incomparable low power consumption allows the BUC to be powered by iDirect and similar modems. Internal 10MHz reference option enables using the BUC with the modems without 10MHz reference.

Key Features

RF Frequency: 12.75 – 13.5 GHz

Output Power: 6W (+38 dBm min)

Double L.O. (switchable 11.80 & 12.05 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (35W max.)

Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

Auto-ranging 15-60 VDC powering option

Digital temperature compensation

Power and lock status LED

Built-in redundancy option

Field-exchangeable (F/N) IF connector

Internal 10MHz high stability reference (optional)

RoHS compliant

Mechanical & Environmental

Dimensions: 140 × 120 × 69.5mm

Weight: 1.2 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
