Actox ABE16KXL / ABE16KXLF
Extended Low Ku-band 16W BUC
• RF Frequency: 12.75 to 13.5 GHz
• IF Frequency: 950 to 1700 MHz
• Double LO: Switchable 11.8 & 12.05 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +42 dBm min.
Security policy
Delivery policy
Return policy

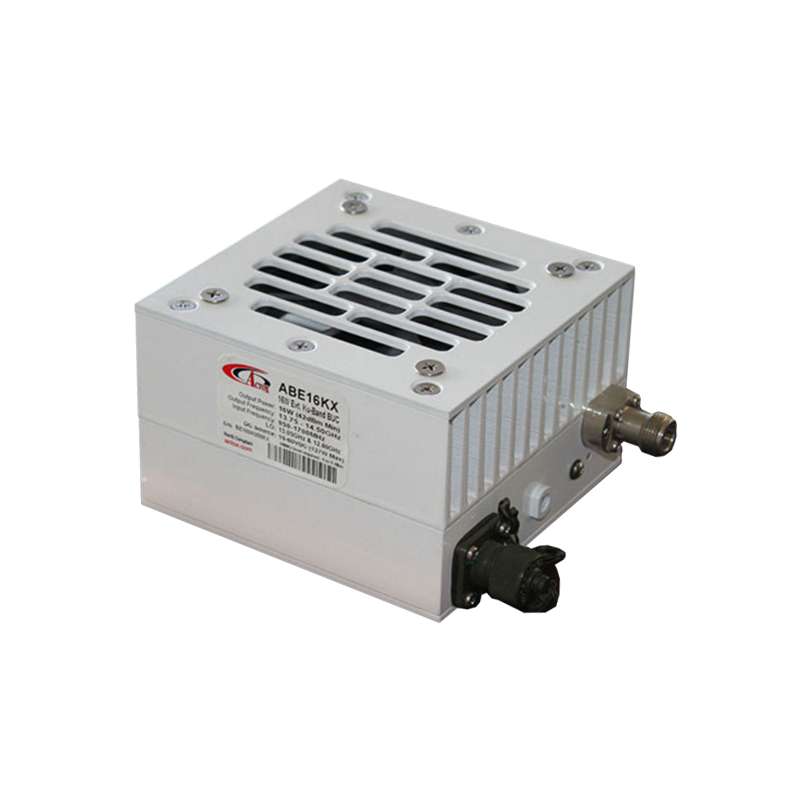

Actox ABE16KXL / ABE16KXLF – 16W 12.75–13.5 GHz Low Ku-Band BUC
This smallest and lightest 16W L-To Low Ku-Band Block Up Converter is based on GaN technology. Incomparable low power consumption, double L.O., field-exchangeable connector, internal 10 MHz reference, and it is powered either with 24 or 48 VDC and consumes less than 92W. The unit is ideal for portable and mobile applications.
Key Features
RF Frequency: 12.75 – 13.5 GHz
Output Power: 16W (+42 dBm min) 8W (+39 dBm) P-Linear
Double L.O. (switchable 11.80 & 12.05 GHz)
IF Frequency: 950 – 1700 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (92W max.)
Auto-ranging powering option 15 - 60 VDC
Internal auto-sensing and controllable high stability 10MHz reference (optional)
Digital temperature compensation
Field-exchangeable (F/N) IF connector
Optional M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
RoHS compliant
Mechanical & Environmental
Dimensions: 120 × 120 × 77mm
Weight: 1.8 kg max.
Vibration/Shock: MIL-STD-810E compliant
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABE16KX, ABE16KXF
- Transmit Band
- 12.75 - 13.50 GHz
- Power Output
- 16W
