Actox ABE25SKXL / ABE25SKXLF

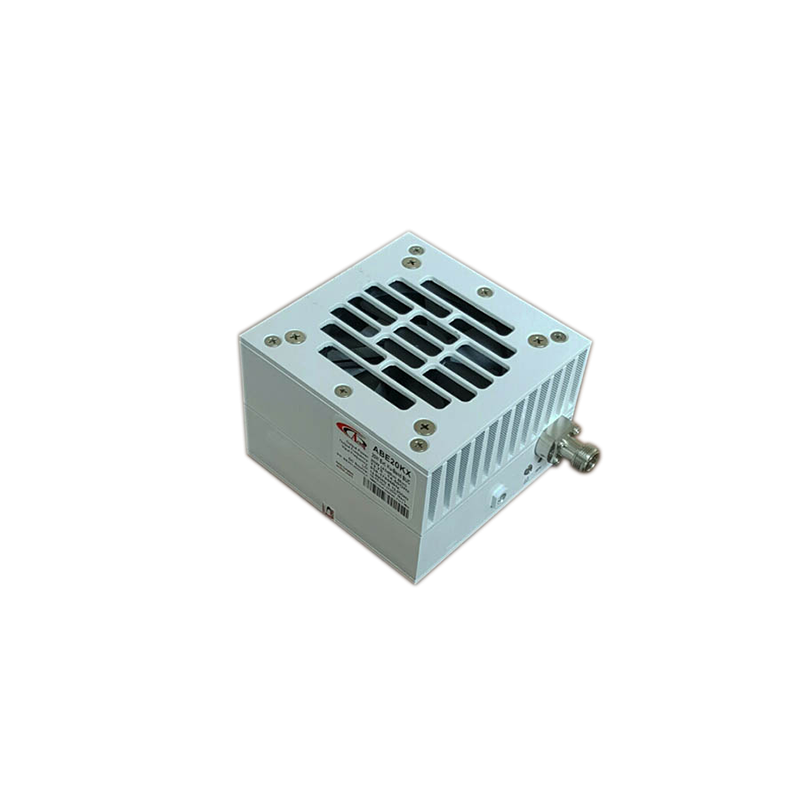

Actox ABE25SKXL/ ABE25SKXLF – 25W 12.75–13.5 GHz Low Ku-Band BUC

This smallest and lightest fanless 25W L-To Low Ku-Band Block Up Converter is designed to be mounted on a feed horn. The unit is ideal for portable and mobile applications. Double L.O. feature makes the unit universal for Low KuBand requirements. It is powered with either 24/48 VDC and consumes less than 120W.

Key Features

RF Frequency: 12.75 – 13.5 GHz

Output Power: 25W (43.5 dBm min, 44 dBm typ.) 13W P-Linear (41 dBm min.)

Double L.O. (electronically and manually switchable (11.80 and 12.05 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (120W max.)

Auto-ranging powering option 15 - 60 VDC

Smallest and lightest

Digital temperature compensation

Field-exchangeable (F/N) IF connector

Optional M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

Amplifier, L.O. and 10MHz Reference Status LEDs

Internal 10MHz high stability reference (optional)

RoHS compliant

Mechanical & Environmental

Dimensions: 120 × 120 × 90.4 mm

Weight: 1.8 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
