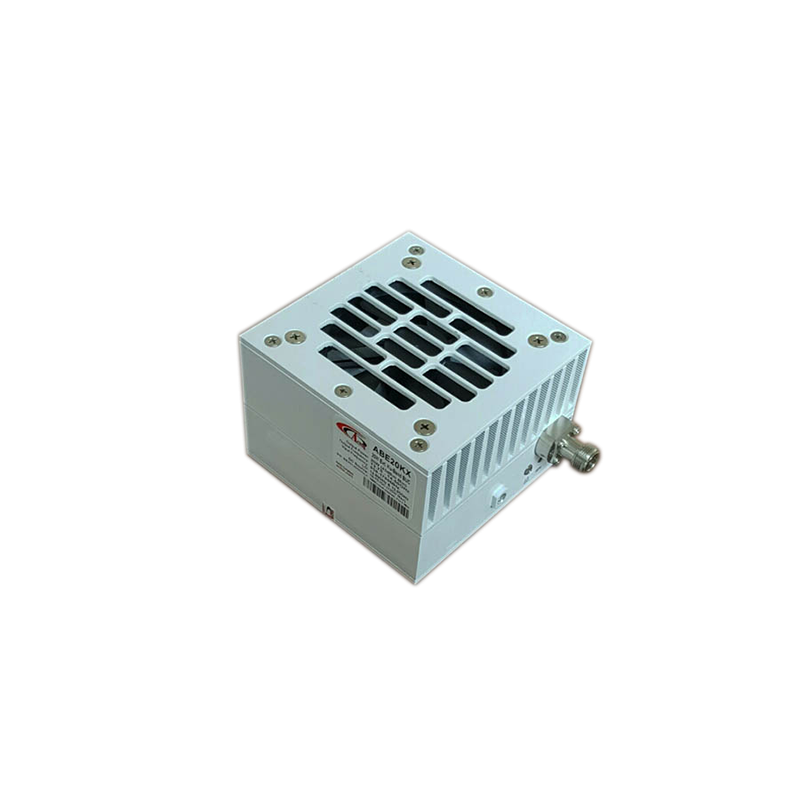

Actox ABC30SKXL / ABC30SKXLF

Actox ABC30SKXL / ABC30SKXLF – 30W 12.75–13.5 GHz Low Ku-Band BUC

This smallest and lightest 30W Ext. Low L-To Ku-Band Block Up Converter is designed to be mounted on a feed horn. The unit is ideal for portable and mobile applications. Double L.O. feature makes the unit universal for Ku Band requirements. The unit can use either external or internal 10MHz reference.

Key Features

RF Frequency: 12.75 – 13.5 GHz

Output Power: 30W (+45 dBm min.) 15W (+41.8 dBm min.) P-Linear

Double L.O. electronically and manually switchable (11.80 and 12.05 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (176W max.)

Auto-ranging powering option 30 - 60 VDC

Extreme P-Out GaN linearity (45 dBm)

Digital temperature compensation

Field-exchangeable (F/N) IF connector

Internal auto-sensing and controllable 10MHz high stability reference (optional)

Amplifier, L.O. and 10MHz Reference Status LEDs

Optional M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional) RoHS compliant

Mechanical & Environmental

Dimensions: 120 × 120 × 90.4 mm

Weight: 1.8 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
