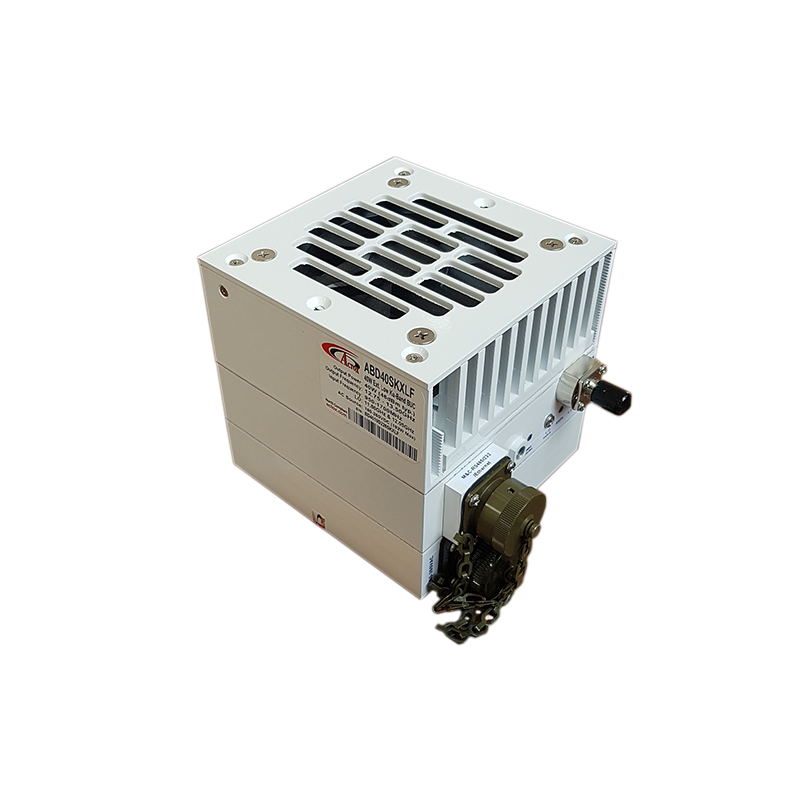

Actox ABD40SKXL / ABD40SKXLF

Actox ABD40SKXL / ABD40SKXLF – 40W 12.75–13.5 GHz Low Ku-Band BUC

This smallest and lightest 40W L-To Low KuBand Block Up Converter is based on GaN technology. Incomparable low power consumption, double L.O., field-exchangeable connector, auto-sensing and controllable internal 10 MHz reference make this unit universal for any Low KuBand application. M&C (FSK) capability enables troubleshooting, monitoring and controlling the BUC.

Key Features

RF Frequency: 12.75 – 13.5 GHz

Output Power: 40W (45.5 dBm min, 46 dBm typ.) 20W P-Line (43 dBm min.)

Double L.O. electronically and manually switchable (11.80 and 12.05 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (192W max.)

Auto-ranging powering option 180 - 260 VDC

Digital temperature compensation

Field-exchangeable (F/N) IF connector

Internal auto-sensing and controllable 10MHz high stability reference (optional)

Built-in redundancy option

Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

RoHS compliant

Mechanical & Environmental

Dimensions: 120 × 120 × 119.4 mm

Weight: 2.4 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
