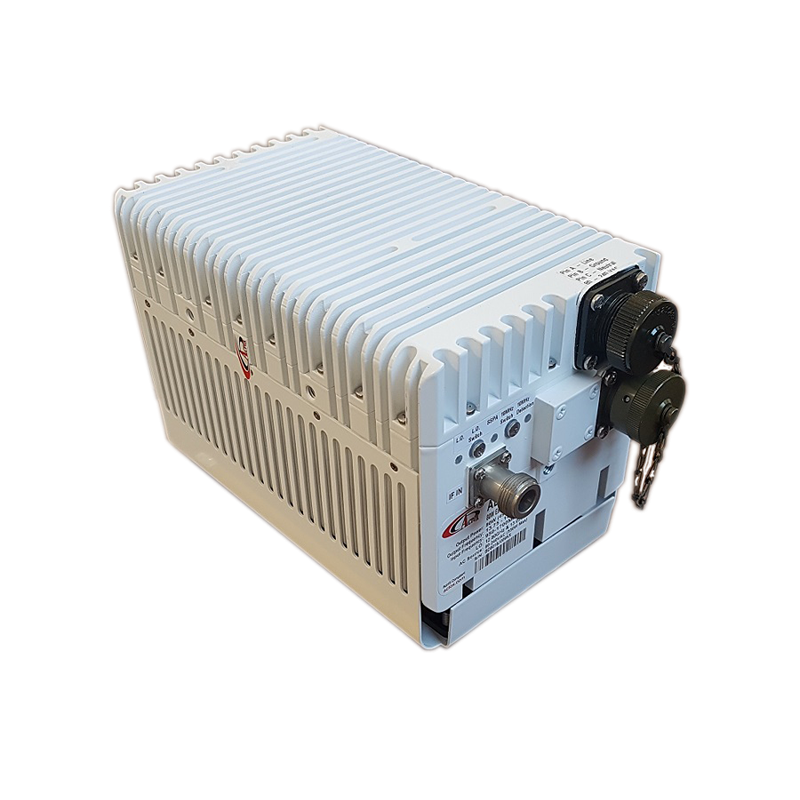

Actox ABD80KXL / ABD80KXLF

Actox ABD80KXL / ABD80KXLF – 80W 12.75–13.5 GHz Low Ku-Band BUC

This smallest and lightest 80W L-To Low KuBand Block Up Converter is based on GaN technology. Incomparable low power consumption, double L.O., field-exchangeable connector, auto-sensing and controllable internal 10 MHz reference make this unit universal for any Low KuBand application. M&C (FSK) capability enables troubleshooting, monitoring and controlling the BUC.

Key Features

RF Frequency: 12.75 – 13.5 GHz

80W (+49 dBm min.) 42.3W (+46.2 dBm min.) P-Linear

Double L.O. (switchable 11.80 & 12.05 GHz)

IF Frequency: 950 – 1700 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (550W max.)

Auto-ranging powering option 90 - 260 VDC

Extreme P-Out GaN linearity

Digital temperature compensation

Field-exchangeable (F/N) IF connector

Internal auto-sensing and controllable 10MHz high stability reference (optional)

Built-in redundancy option

Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

Special Feature: Chinese GUI (optional)

Mechanical & Environmental

Dimensions: 195 × 120 × 135 mm

Weight: 3.8 kg max.

Vibration/Shock: MIL-STD-810E compliant

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
