Actox ABE4UKA / ABE4UKAF
Universal Ka-band 4W BUC
• RF Frequency: 27.5 to 31.0 GHz
• IF Frequency: 950 to 1950 MHz
• Quad LO: Switchable 26.55, 27.4, 28.05 and 29.05 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +36 dBm min.
Security policy
Delivery policy
Return policy

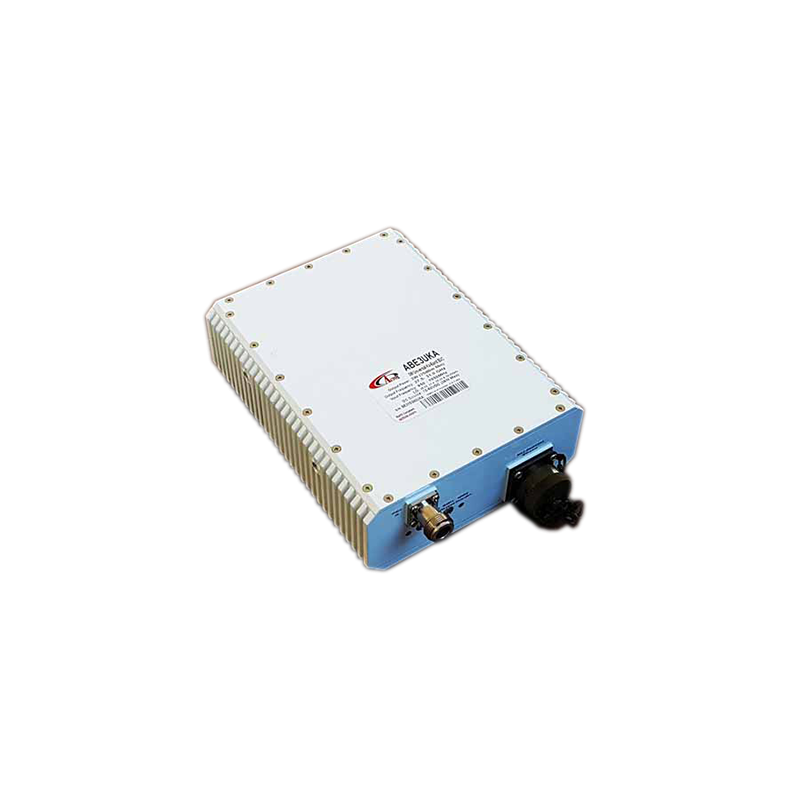

Actox ABE4UKA / ABE4UKAF – 4W 27.5–31.0 GHz Universal Ka-Band BUC
This unique first ever 4W L-To Full Ka Band Block Up Converter covers the O3B (27.65-29.1 GHz), Commercial (29.0-30.0 GHz) and Military (30.0-31.0 GHz) frequency bands. M&C (FSK) capability enables trouble shooting, monitoring and controlling the BUC. The unit provides a 10MHz reference autosensing feature.
Key Features
RF Frequency: 27.5 – 31.0 GHz
Output Power: 4W (+36 dBm min.); 2W (+33 dBm min) P-Linear
Quad L.O. (electronically and manually switchable 26.55, 27.4, 28.05 and 29.05 GHz)
IF Frequency: 950 – 1700 MHz
Low power consumption (39W max)
Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
L.O. lock and amplifier LEDs
Built-in redundancy option
Field-exchangeable (F/N) IF connector
Internal 10MHz high stability reference autosensing and controllable (optional)
RoHS compliant
Mechanical & Environmental
Dimensions: 179 × 140 × 58 mm
Weight: 2.4 kg max.
Vibration and shock: Complies with MIL-STD-810E
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABE4UKA, ABE4UKAF
- Transmit Band
- 27.50 - 31.00 GHz
- Power Output
- 4W
