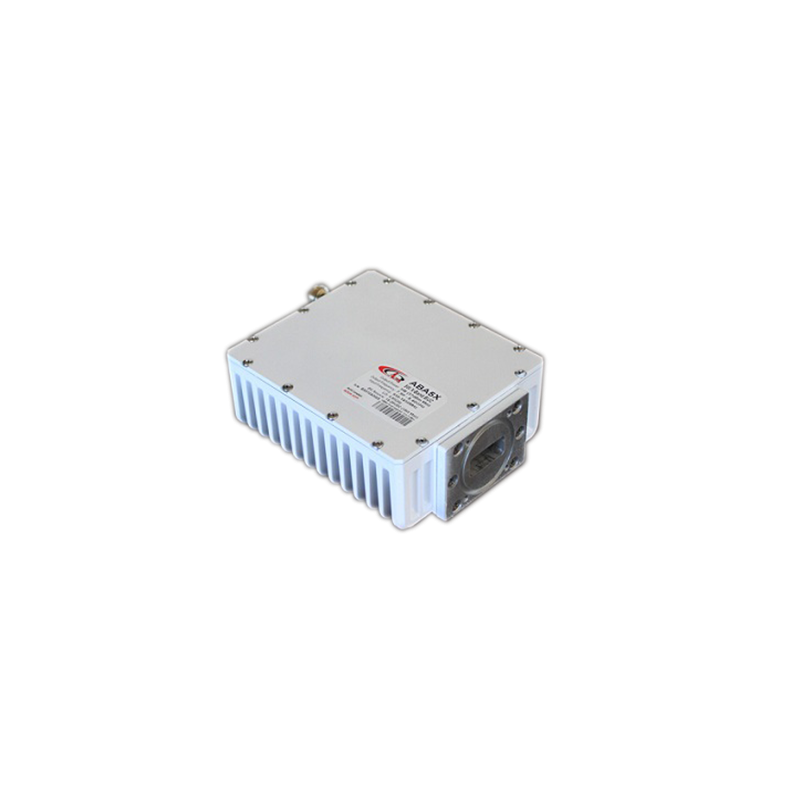

Actox ABA5X / ABA5XF
X-band 5W BUC
• RF Frequency: 7.9 to 8.4 GHz
• IF Frequency: 950 to 1450 MHz
• LO Frequency: 6.95 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +37 dBm min.
Security policy
Delivery policy
Return policy
Actox ABA5X / ABA5XF – 5W 7.9–8.4 GHz X-Band BUC
This smallest and lightest 5W L-To X-Band Block Up Converter is based on GaN technology. High power efficiency resulting in low power consumption.
Key Features
RF Frequency: 7.9 – 8.4 GHz
Output Power: 5W (+37 dBm min.)
Local oscillator: 6.95 GHz
IF Frequency: 950 – 1450 MHz
GaN technology for high efficiency and reliability
Low power consumption (33W max)
Auto-ranging powering option 15-28 VDC
Internal 10MHz high stability reference (optional)
Digital temperature compensation
Field-exchangeable (F/N) IF connector
Power and lock status LED
RoHS compliant
Mechanical & Environmental
Dimensions: 140 × 120 × 52.5 mm
Weight: 1.0 kg max.
Vibration and shock: Complies with MIL-STD-810E
IP67 outdoor-rated enclosure
Operating temperature: -45°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABA5X / ABA5XF
- Transmit Band
- 7.90 - 8.40 GHz
- Power Output
- 5W
Specific References
X-band 5W BUC
• RF Frequency: 7.9 to 8.4 GHz
• IF Frequency: 950 to 1450 MHz
• LO Frequency: 6.95 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +37 dBm min.
