Actox ABA5NX / ABA5NXF
X-band 5W BUC
• RF Frequency: 7.9 to 8.4 GHz
• IF Frequency: 950 to 1450 MHz
• LO Frequency: 6.95 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +37 dBm min.
Security policy
Delivery policy
Return policy
Actox ABA5NX / ABA5NXF – 5W 7.9–8.4 GHz X-Band BUC

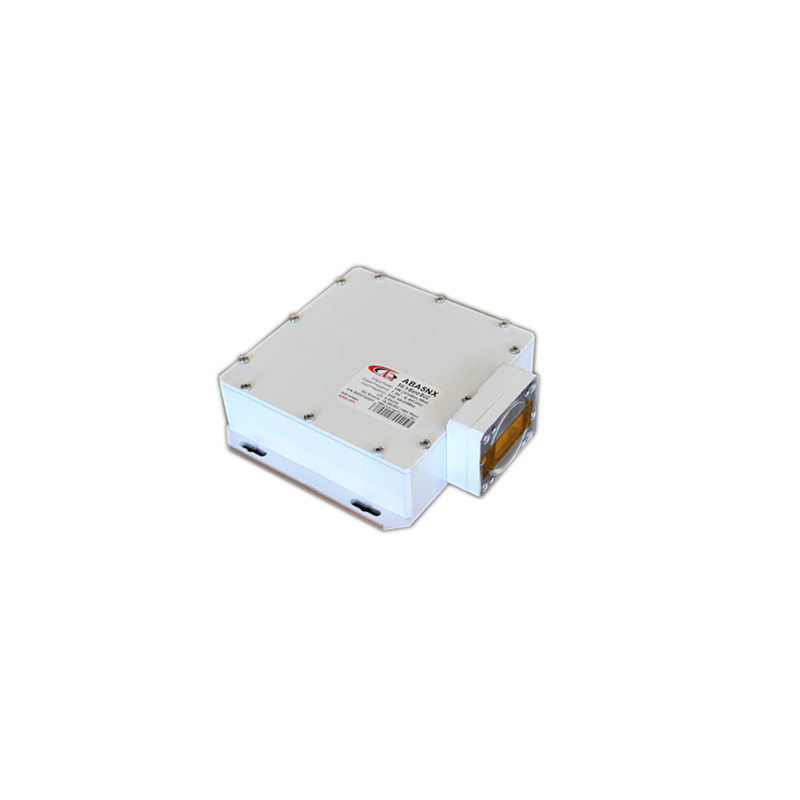

This smallest and lightest 5W L-To X-Band Block Up Converter is based on GaN technology. It is designed to be mounted on the feed horn. High power efficiency resulting in low power consumption.
Key Features
RF Frequency: 7.9 – 8.4 GHz
Output Power: 5W (+37 dBm min.)
Local oscillator: 6.95 GHz
IF Frequency: 950 – 1450 MHz
GaN technology for high efficiency and reliability
Low power consumption (33W max)
Auto-ranging powering option 15-28 VDC
Internal 10MHz high stability reference (optional)
Digital temperature compensation
Field-exchangeable (F/N) IF connector
Power and lock status LED
RoHS compliant
Mechanical & Environmental
Dimensions: 140 × 120 × 32 mm
Weight: 1.0 kg max.
Vibration and shock: Complies with MIL-STD-810E
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABA5NX / ABA5NXF
- Transmit Band
- 7.90 - 8.40 GHz
- Power Output
- 5W
Specific References
X-band 5W BUC
• RF Frequency: 7.9 to 8.4 GHz
• IF Frequency: 950 to 1450 MHz
• LO Frequency: 6.95 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +37 dBm min.
