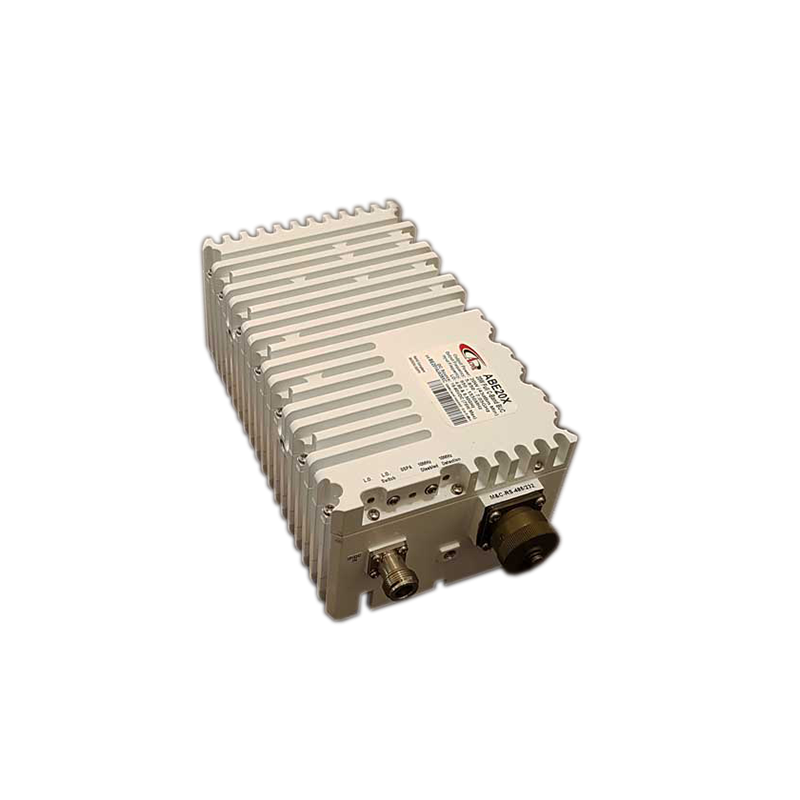

Actox ABE20X / ABE20XF – 20W 7.9–8.4 GHz X-Band Fanless BUC
This smallest and lightest fanless 20W L-To X-Band Block Up Converter is based on GaN technology. It could be mounted directly on a feed horn. The unit can be powered either with 24VDC or 48VDC. The unit can use either external or internal 10MHz reference.
Key Features
RF Frequency: 7.9 – 8.4 GHz
Output Power: 20W (+43 dBm min.)
Local oscillator: 6.95 GHz
IF Frequency: 950 – 1450 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (85W max.)
Auto-ranging powering 15-60 VDC
High power efficiency (20W min over temperature)
Optional M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
Internal 10MHz high stability reference (optional)
Digital temperature compensation
Field-exchangeable (F/N) IF connector
Special Feature: Chinese GUI (optional)
Mechanical & Environmental
Dimensions: 195 × 120 × 87 mm
Weight: 2.76 kg max.
Vibration and shock: Complies with MIL-STD-810E
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABE20X / ABE20XF
- Transmit Band
- 7.90 - 8.40 GHz
- Power Output
- 20W
