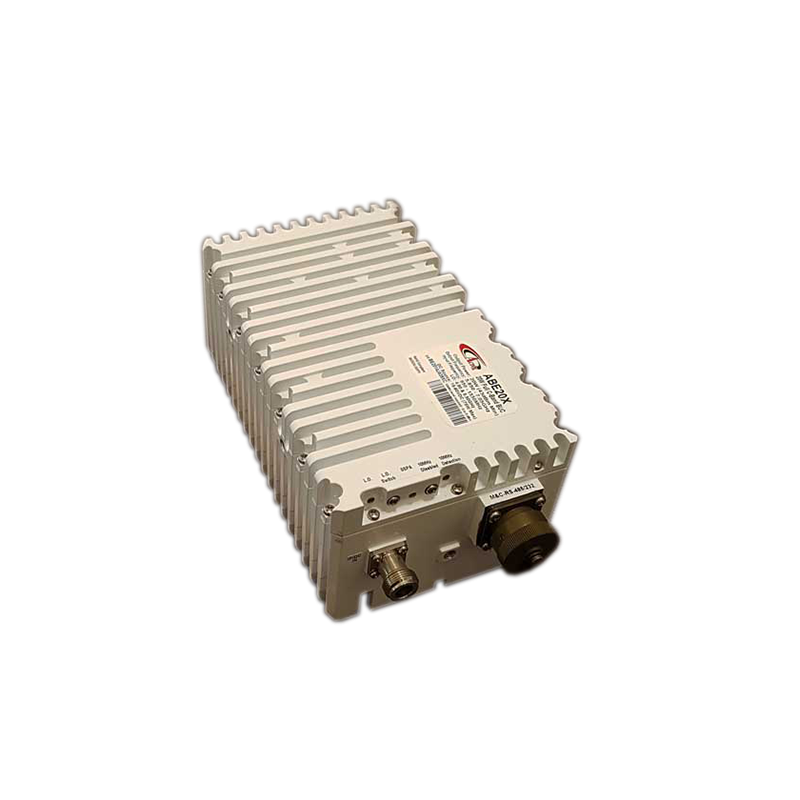

Actox ABCN40X / ABCN40XF

Actox ABCN40X / ABCN40XF – 40W 7.9–8.4 GHz X-Band BUC

This smallest and lightest 40W(min) L-To X-Band Block Up Converter is based on GaN technology. It could be mounted directly on a feed horn. High power efficiency resulting in low current (<3.7 amps). The unit can use either external or internal 10MHz reference.

Key Features

RF Frequency: 7.9 – 8.4 GHz

Output Power: 40 W (+46 dBm min.) , 20 W (43 dBm) P-Linear

Local oscillator: 6.95 GHz

IF Frequency: 950 – 1450 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (179W max.)

Auto-ranging powering 30-60 VDC

High power efficiency (40W min over temperature)

Digital temperature compensation

Field-exchangeable (F/N) IF connector

Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

Internal 10MHz high stability reference (optional)

Special Feature: Chinese GUI (optional)

Mechanical & Environmental

Dimensions: 195 × 120 × 104 mm

Weight: 2.96 kg max.

Vibration and shock: Complies with MIL-STD-810E

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
