Actox ABCN50X / ABCN50XF
X-band 50W BUC
• RF Frequency: 7.9 to 8.4 GHz
• IF Frequency: 950 to 1450 MHz
• LO Frequency: 6.95 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +47 dBm min.
Security policy
Delivery policy
Return policy

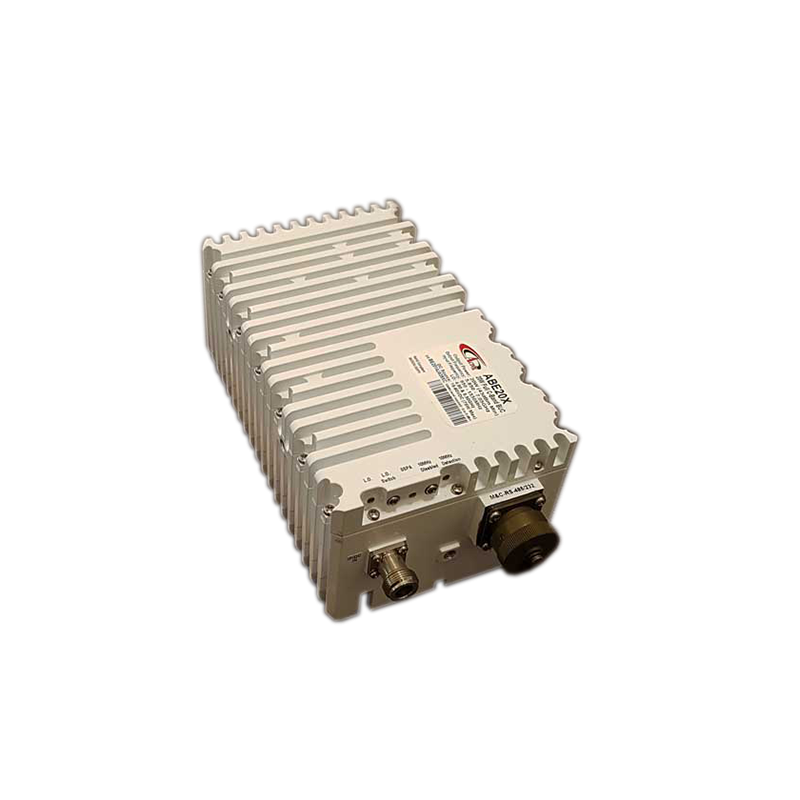

Actox ABCN50X / ABCN50XF – 50W 7.9–8.4 GHz X-Band BUC
This smallest and lightest 50W(min) L-To X-Band Block Up Converter is based on GaN technology. It could be mounted directly on a feed horn. High power efficiency resulting in low current (<3.9 amps). The unit can use either external or internal 10MHz reference.
Key Features
RF Frequency: 7.9 – 8.4 GHz
Output Power: 50 W (+47 dBm min.) , 25 W (44 dBm) P-Linear
Local oscillator: 6.95 GHz
IF Frequency: 950 – 1450 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (189W max.)
Auto-ranging powering 30-60 VDC
High power efficiency (50W min over temperature)
Digital temperature compensation
Field-exchangeable (F/N) IF connector
Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
Internal 10MHz high stability reference (optional)
Special Feature: Chinese GUI (optional)
Mechanical & Environmental
Dimensions: 195 × 120 × 104 mm
Weight: 2.96 kg max.
Vibration and shock: Complies with MIL-STD-810E
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABCN50X, ABCN50XF
- Transmit Band
- 7.90 - 8.40 GHz
- Power Output
- 50W
