Actox ABDN50X / ABDN50XF
X-band 50W BUC
• RF Frequency: 7.9 to 8.4 GHz
• IF Frequency: 950 to 1450 MHz
• LO Frequency: 6.95 GHz
• IF Connector: N (50Ω) or F type (75Ω)
• Output Power: +47 dBm min.
Security policy
Delivery policy
Return policy

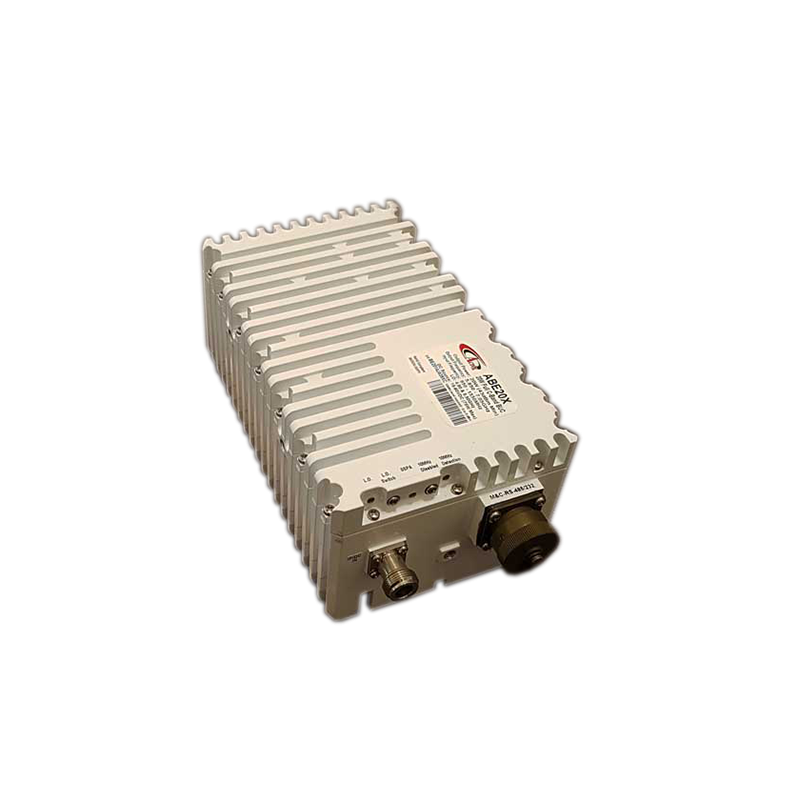

Actox ABDN50X / ABDN50XF – 50W 7.9–8.4 GHz X-Band BUC
The smallest and lightest 50W (min.) L-To X-Band Block Up Converter is based on GaN technology. It is designed to be mounted directly on the feed horn. High power efficiency resulting in low current. The unit can use either external or internal 10MHz reference.
Key Features
RF Frequency: 7.9 – 8.4 GHz
Output Power: 50 W (+47 dBm min.) , 26.7 W (44.26 dBm) P-Linear
Local oscillator: 6.95 GHz
IF Frequency: 950 – 1450 MHz
GaN technology for high efficiency and reliability
Incomparable low power consumption (198W max.)
Auto-ranging 85 - 260 VAC powering option
Power and lock status LED
Digital temperature compensation
Field-exchangeable (F/N) IF connector
Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)
Internal 10MHz high stability reference (optional)
Special Feature: Chinese GUI (optional)
Mechanical & Environmental
Dimensions: 195 × 120 × 109 mm
Weight: 3.2 kg max.
Vibration and shock: Complies with MIL-STD-810E
IP67 outdoor-rated enclosure
Operating temperature: -40°C to +55°C
Applications
VSAT uplink systems
Broadcast uplinks
Teleport infrastructure
Remote satellite communication terminals
Government and military SATCOM systems
ABDN50X, ABDN50XF
- Transmit Band
- 7.90 - 8.40 GHz
- Power Output
- 50W
