Actox ABD100X / ABD100XF

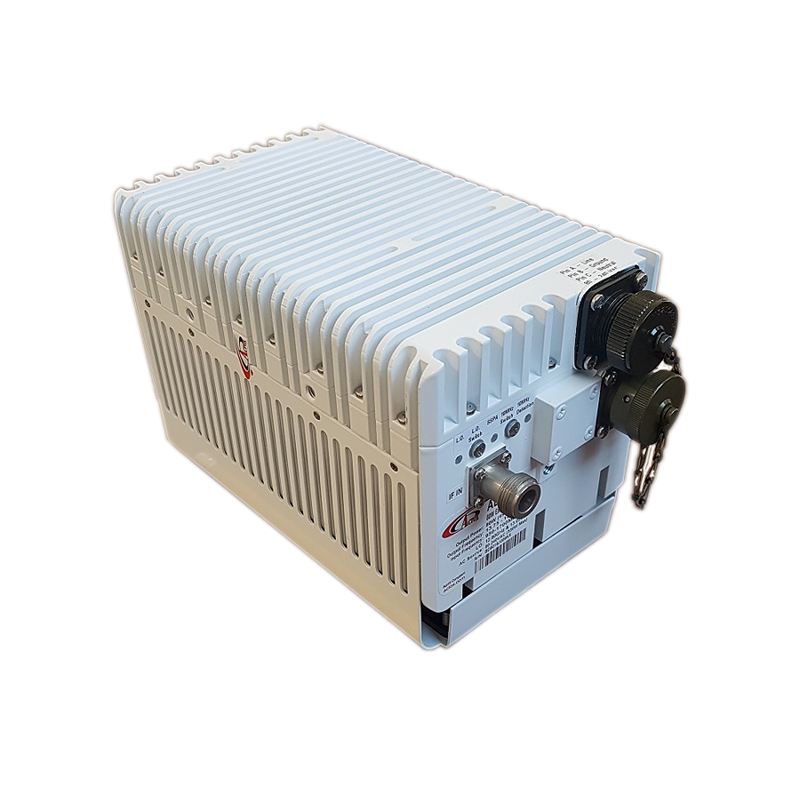

Actox ABD100X / ABD100XF – 100W 7.9–8.4 GHz X-Band BUC

This AC powered outdoor 100 W(min) L-To X-Band Block Up Converter is based on GaN technology which enables high efficiency, low power consumption and high reliability. The unit is equipped with M&C capability. The unit can use either external or internal 10MHz reference.

Key Features

RF Frequency: 7.9 – 8.4 GHz

Output Power: 100 W (+50 dBm min.) , 52 W (47.16 dBm) P-Linear

Local oscillator: 6.95 GHz

IF Frequency: 950 – 1450 MHz

GaN technology for high efficiency and reliability

Incomparable low power consumption (450W max.)

Auto-ranging 85 - 260 VAC powering option

Power and lock status LED

Digital temperature compensation

Field-exchangeable (F/N) IF connector

Advanced M&C - combined RS-232/485 / Ethernet (HTTP and SNMP ver. 2 & 3) / FSK (optional)

Internal 10MHz high stability reference (optional)

Special Feature: Chinese GUI (optional)

Mechanical & Environmental

Dimensions: 247.5 × 120 × 119 mm

Weight: 4.8 kg max.

Vibration and shock: Complies with MIL-STD-810E

IP67 outdoor-rated enclosure

Operating temperature: -40°C to +55°C

Applications

VSAT uplink systems

Broadcast uplinks

Teleport infrastructure

Remote satellite communication terminals

Government and military SATCOM systems
