Datum M7D & M7LD High-Speed DVB-S2X Satellite Dual Demodulators

Datum M7D & M7LD High-Speed DVB-S2X Satellite Dual Demodulators

The Datum Systems M7D and M7LD are compact, high-speed DVB-S2 and DVB-S2X satellite dual demodulators designed for point-to-point, point-to-multipoint, mesh, unicast and multicast networks. Two fully independent demodulators allow simultaneous reception of carriers from different bandwidth allocations or satellite transponders.

The M7D supports 50–180 MHz IF, while the M7LD operates across 950–2150 MHz L-band. Each platform supports data rates from 256 kbps to 350 Mbps, symbol rates up to 72 Msps and modulation through 64APSK, with optional 128APSK and 256APSK.

DVB-S2X, Adaptive Coding and Modulation, and carrier roll-off factors down to 5% help improve spectral efficiency, throughput and link availability. The integrated DVB-GSE Express Ethernet interface provides four Gigabit Ethernet ports, an optional SFP port, QoS and VLAN support.

M7D Frequency Range: 50–180 MHz IF
M7LD Frequency Range: 950–2150 MHz L-band
Configuration: Two fully independent satellite demodulators
Standards: DVB-S2 and DVB-S2X
Data Rate: 256 kbps–350 Mbps
Symbol Rate: 256 ksps–72 Msps
Modulation: QPSK, 8PSK, 8QAM, 16APSK, 32APSK and 64APSK
Optional Modulation: 128APSK and 256APSK
FEC: LDPC inner code and BCH outer code
Carrier Roll-Off: 5%, 8%, 10%, 15%, 20%, 25%, 30%, 35% and 40%
Adaptive Coding and Modulation: Supported
Smart Carrier Cancelling: Optional
Data Interface: Gigabit Ethernet Layer 2 bridge
Encapsulation: DVB Generic Stream Encapsulation
Carrier ID: Optional ETSI TS 103 129 support
Ethernet Ports: Four RJ-45 ports plus optional SFP
Network Features: QoS and selectable VLAN support
Management: Web browser, SNMP, RS-232 and RS-485
Input Power: 8–36 VDC; optional -48 VDC
Operating Temperature: 0°C to +50°C
Dimensions: 8.5 × 11 × 1.75 inches
Weight: Less than 5 lb fully configured

Key Features:

• Two independent high-speed satellite demodulators

• DVB-S2 and DVB-S2X waveform support

• Available in IF and L-band configurations

• Data rates up to 350 Mbps

• Symbol rates up to 72 Msps

• DVB-S2X modulation through 64APSK

• Optional 128APSK and 256APSK

• Adaptive Coding and Modulation

• Sharp carrier roll-off factors down to 5%

• Optional Smart Carrier Cancelling

• DVB-GSE Express Ethernet interface

• Four Gigabit Ethernet ports with optional SFP

• Independent carrier and transponder operation

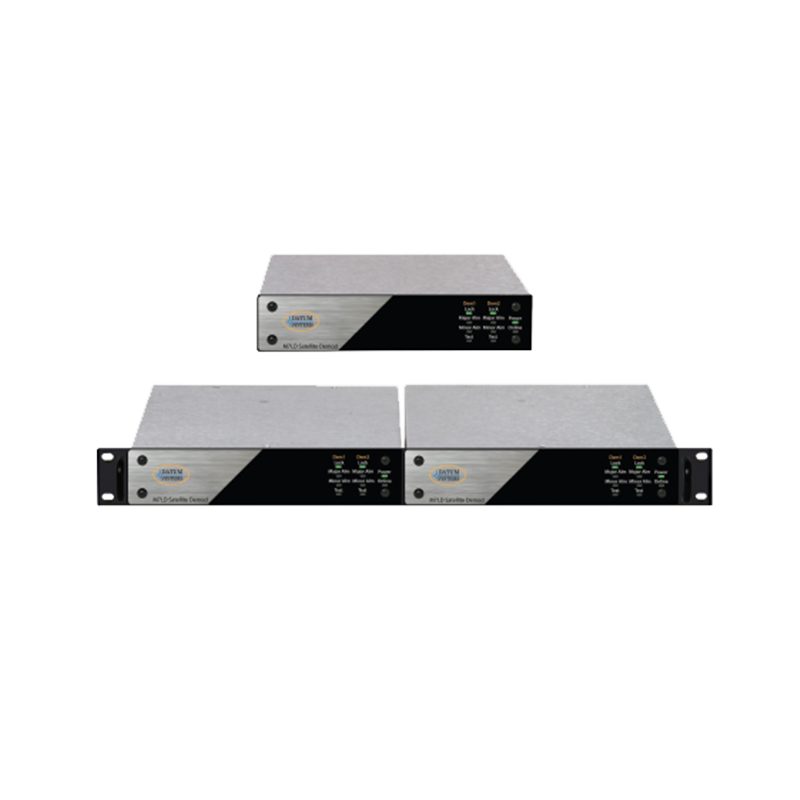

• Compact half-rack design allows two units per 1RU

• Built-in 1:1 redundancy control
