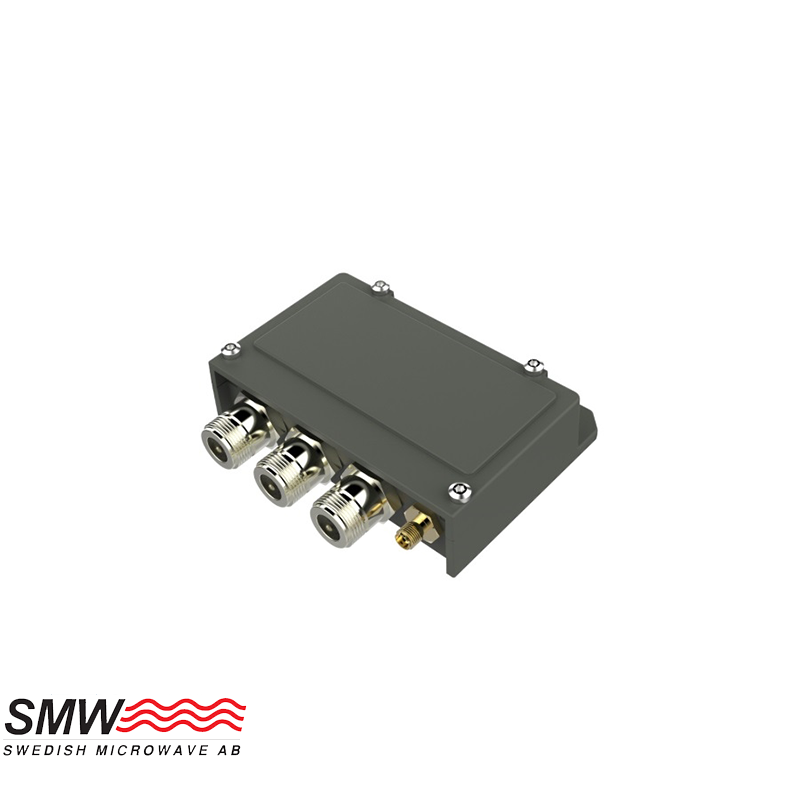

SMW Diplexer with DC Inserter 10 MHz and L-Band

SMW L-Band DC Inserter / 10 MHz Diplexer | Outdoor Reference + Power Injector

The SMW L-Band DC Inserter / 10 MHz Diplexer enables the injection of both DC power (up to 1A) and a 10 MHz reference signal into an L-band coaxial line—ideal for powering and synchronizing LNBs or BUCs when the modem lacks built-in support. Recommended for use with the SMW 10 MHz Reference Oscillator, this passive, weatherproof unit ensures low insertion loss and reliable performance in harsh outdoor conditions.

Key Features:

• Combines L-band, DC power, and 10 MHz reference on a single coaxial cable
• Low insertion loss for minimal signal degradation
• Supports DC insertion up to 1A
• Fully passive—no external power required for operation
• IP67-rated enclosure for outdoor use
• Wide operating temperature range
• Connector options: F-type, N-type, or SMA
• Optional DC input via connector or pigtail cable

Applications:

• Power and reference signal injection for LNB or BUC
• Outdoor SATCOM systems lacking modem-integrated DC/reference outputs
• Remote terminal and VSAT deployments
