DTV Innovations DA-100 1×4 ASI/310M/SD-SDI Distribution Amplifier

DTV Innovations DA-100 1×4 ASI/310M/SD-SDI Distribution Amplifier

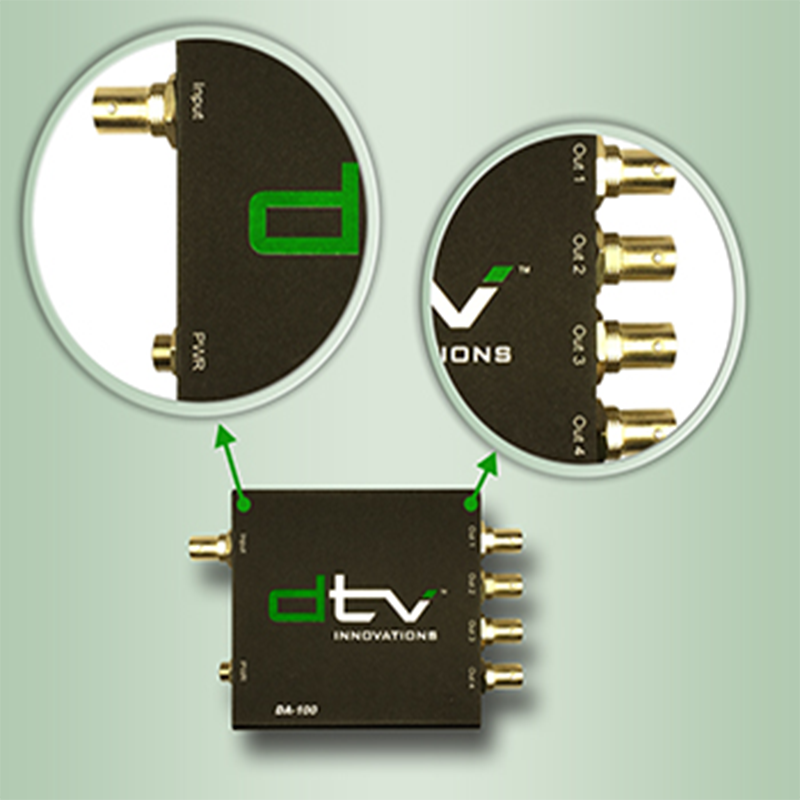

The DTV Innovations DA-100 is an ultra-compact 1×4 distribution amplifier for DVB-ASI, SMPTE-310M and SD-SDI signals. It distributes one input to four fully isolated outputs and can be used as a point-to-multipoint signal-distribution hub or an inline repeater for extending transmission distances.

The DA-100 incorporates equalized, fully isolated circuitry that protects its input and outputs from DC line spikes. It supports data rates from 4 to 270 Mbps with very low jitter, making it suitable for use with professional encoders, analyzers and other compatible broadcast equipment.

A relay bypass routes the input signal to the primary output during a power failure, helping maintain signal continuity. Input-lock and power indicators provide immediate operating status, while its compact enclosure eliminates the need for a conventional rack-mounted distribution frame. An external power supply is included.

Key Features

• Compact 1×4 digital video distribution amplifier

• Supports DVB-ASI, SMPTE-310M and SD-SDI

• One equalized and fully isolated input

• Four equalized and fully isolated outputs

• 75-ohm BNC connectors

• Data rates from 4 to 270 Mbps

• DVB-ASI operation at up to 270 Mbps

• SMPTE 259M SD-SDI operation at up to 270 Mbps

• SMPTE-310M operation at 19.392658 Mbps

• Very low output jitter

• Internal isolation protects against DC line spikes

• Relay bypass to the primary output

• Maintains the primary signal path during power failure

• Input signal-lock detection

• Input signal-lock detection LED

• Power indicator LED

• Suitable for point-to-multipoint signal distribution

• Functions as an inline signal repeater

• Compatible with professional encoders and analyzers

• Ultra-compact design saves rack space

• External power supply included

• Reliable and cost-effective broadcast solution

• Made in the USA
