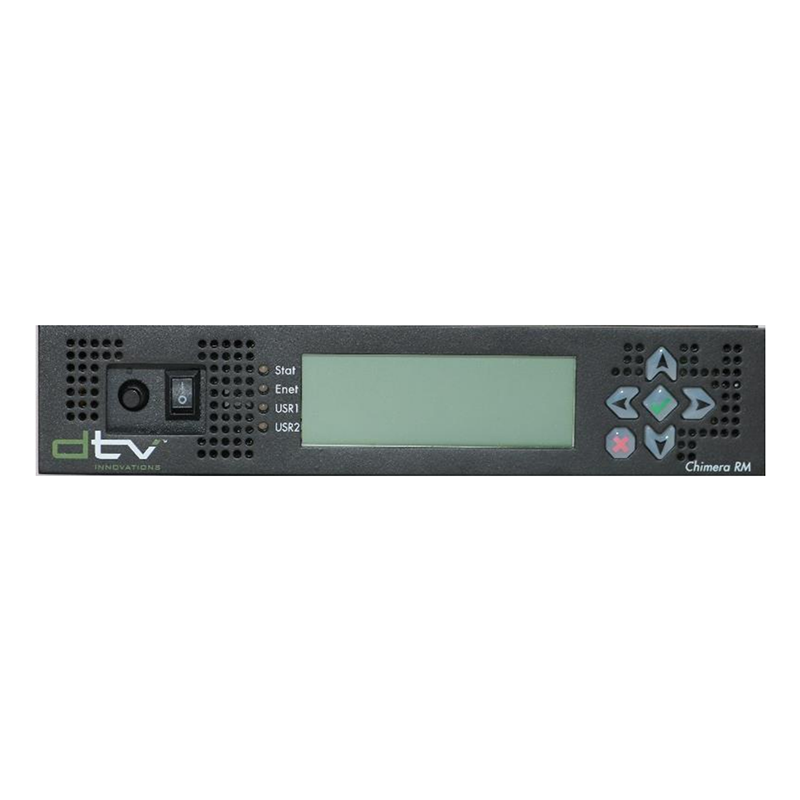

DTV Innovations Chimera-RM Video Encoder & DVB-S2X Modulator

DTV Innovations Chimera-RM Video Encoder & DVB-S2X Modulator

The DTV Innovations Chimera-RM is a compact professional MPEG-2 and H.264/AVC video encoder designed for ATSC disaster recovery, outside broadcasting, live IP streaming and DSNG applications. Its half-rack-width design allows two units to be installed side by side in 1 RU using the optional rack-mount kit.

Chimera-RM accepts HD-SDI, HDMI and DVB-ASI inputs and provides ASI and MPEG transport stream over IP outputs with SMPTE 2022 FEC. It supports SD and HD video up to 1080p30, RTMP and DASH/HTML5 streaming, integrated EAS and static PSIP as standard, with optional dynamic PSIP, AAC audio, recording, decoding and transcoding licenses.

An optional DVB-S, DVB-S2 and DVB-S2X satellite modulator adds L-Band and IF-Band RF outputs, DVB-CID compliance and BISS encryption. Chimera-RM can simultaneously support professional video encoding, IP streaming and satellite transmission in a compact platform suited for fly-away, mobile and fixed-station broadcast systems.

Key Features

• Professional MPEG-2 and H.264/AVC video encoder

• Compact half-rack-width design

• Two units mount side by side in 1 RU with optional rack-mount kit

• SD and HD video support up to 1080p30

• HD-SDI, HDMI and DVB-ASI inputs

• ASI and MPEG transport stream over IP outputs

• RTMP and DASH/HTML5 live streaming

• SMPTE 2022 FEC on TSoIP output

• Encoding bitrates from 256 kbps to 80 Mbps

• Static PSIP included with optional dynamic PSIP

• MPEG-1 Layer II audio encoding

• Optional AAC-LC and HE-AAC audio encoding

• Integrated EAS support

• Optional recording, decoding and transcoding

• ATSC and DVB compliant

• Optional DVB-S, DVB-S2 and DVB-S2X satellite modulator

• Optional L-Band and IF-Band RF outputs

• Optional BISS Mode 0, 1 and E encryption

• DVB-CID compliant with satellite modulator

• Internal and external 10 MHz reference support

• Compact, lightweight 12 VDC design

• Made in the USA
