DTV Innovations Gryphon PVE-2 MPEG Video Encoder

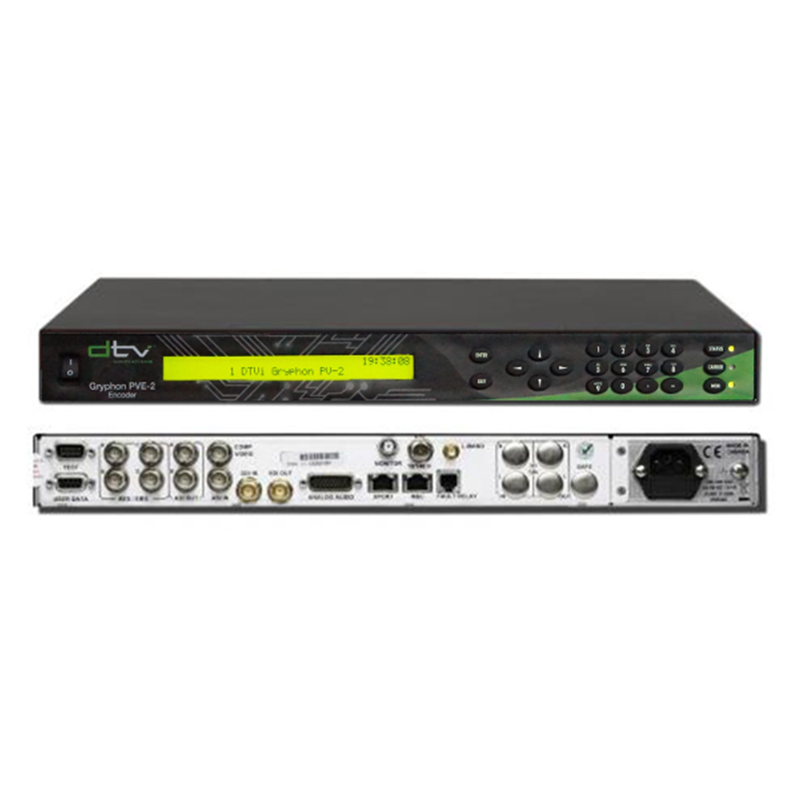

DTV Innovations Gryphon PVE-2 MPEG-2/H.264 Video Encoder

The DTV Innovations Gryphon PVE-2 is a professional MPEG-2 and MPEG-4 AVC/H.264 video encoder designed for television distribution, satellite news gathering, sports contribution and IP program delivery. Its intuitive front-panel controls and embedded web interface enable operators to configure contribution links and get on air in less than 60 seconds.

Gryphon PVE-2 supports analog composite, SD-SDI and HD-SDI video inputs with ASI and Gigabit Ethernet transport-stream outputs. Its advanced compression engine supports dynamic GOP, scene-change, fade and skin-tone detection to provide excellent video quality at low bitrates, including standard-definition satellite contribution at symbol rates as low as 1 MSymbol/s.

A software-license-based architecture allows the encoder to expand with changing operational requirements. Available options include HD encoding up to 1080p60, MPEG-2 4:2:2 profiles, additional audio channels, AAC audio, an internal multiplexer, BISS encryption and a DVB-CID-compliant DVB-S/S2 satellite modulator.

Key Features

• Professional MPEG-2 and MPEG-4 AVC/H.264 video encoding

• Designed for television distribution and outside broadcasting

• Satellite sports and news contribution applications

• IP program contribution and distribution

• Intuitive front-panel controls and embedded web interface

• Contribution-link setup in less than 60 seconds

• Analog composite, SD-SDI and HD-SDI video inputs

• SD and optional HD encoding up to 1080p60

• Standard MPEG-2 and MPEG-4 SD 4:2:0 encoding

• Optional MPEG-2 4:2:2 encoding

• Dynamic GOP and extended GOP support

• Scene-change, fade and skin-tone detection

• ASI and Gigabit Ethernet transport-stream outputs

• Optional SMPTE 2022 FEC on Ethernet output

• Two stereo audio pairs standard

• Expandable to eight stereo audio pairs

• MPEG-1 Layer II audio encoding

• AC-3 5.1 and SMPTE 302M pass-through

• Optional AAC-LC and HE-AAC audio encoding

• Optional internal transport-stream multiplexer

• Optional DVB-S/S2 satellite modulator

• DVB-CID compliant with optional modulator

• Optional BISS Modes 0, 1 and E encryption

• Software-license-based feature upgrades

• 1 RU rack-mount chassis

• Made in the USA
