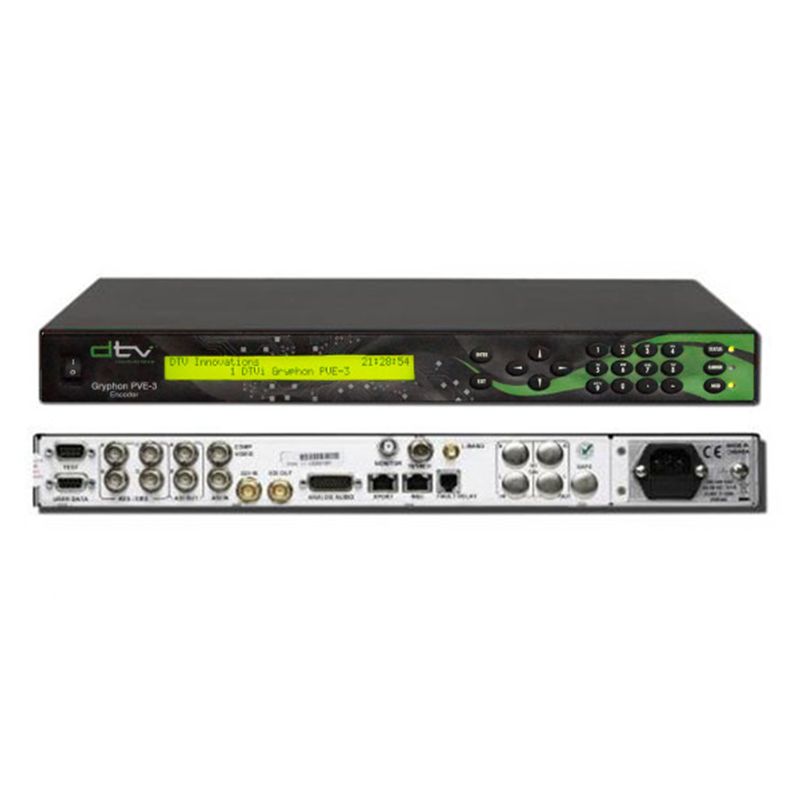

DTV Innovations Gryphon PVE-3 Contribution Video Encoder

DTV Innovations Gryphon PVE-3 Contribution Video Encoder

The DTV Innovations Gryphon PVE-3, also known as the IDC TITAN 3, is a professional low-latency contribution video encoder designed for outside broadcasting, satellite news gathering, sports contribution and video distribution. It supports MPEG-2 and optional MPEG-4 AVC/H.264 encoding with selectable latency as low as 150 ms.

Gryphon PVE-3 accepts analog composite, SD-SDI and HD-SDI video inputs and provides dual DVB-ASI and Gigabit Ethernet transport-stream outputs. Available video options include HD encoding, 4:2:2 chroma sampling and 10-bit compression, while its intuitive front-panel controls and embedded web interface enable contribution-link setup in less than 60 seconds.

Its software-license-based architecture allows broadcasters to add advanced capabilities as requirements evolve. Available options include AAC audio encoding, additional audio channels, SMPTE 2022 FEC, an internal multiplexer, BISS encryption and a DVB-CID-compliant DVB-S/S2 satellite modulator.

Key Features

• Professional contribution encoder for outside broadcasting

• Ultra-low selectable latency starting at 150 ms

• Rapid startup and contribution-link configuration

• MPEG-2 video encoding standard

• Optional MPEG-4 AVC/H.264 video encoding

• SD and optional HD video encoding

• Optional 4:2:2 8-bit video compression

• Optional 4:2:2 10-bit video compression

• PAL and NTSC video support

• Supports 480i, 576i, 720p and 1080i formats

• Analog composite, SD-SDI and HD-SDI inputs

• Dual DVB-ASI transport-stream outputs

• Gigabit Ethernet MPEG transport-stream output

• Optional SMPTE 2022 FEC

• Dynamic and extended GOP support

• Scene-change, fade and skin-tone detection

• Two compressed audio pairs standard

• Expandable to eight compressed audio pairs

• MPEG-1 Layer II audio encoding

• AC-3 5.1 and SMPTE 302M pass-through

• Optional AAC-LC and HE-AAC audio encoding

• Optional internal transport-stream multiplexer

• Optional DVB-S/S2 satellite modulator

• DVB-CID compliant with optional modulator

• Optional BISS Modes 0, 1 and E encryption

• Intuitive front-panel controls

• Integrated web-browser interface

• Software-license-based feature upgrades

• 1 RU rack-mount chassis

• Made in the USA
