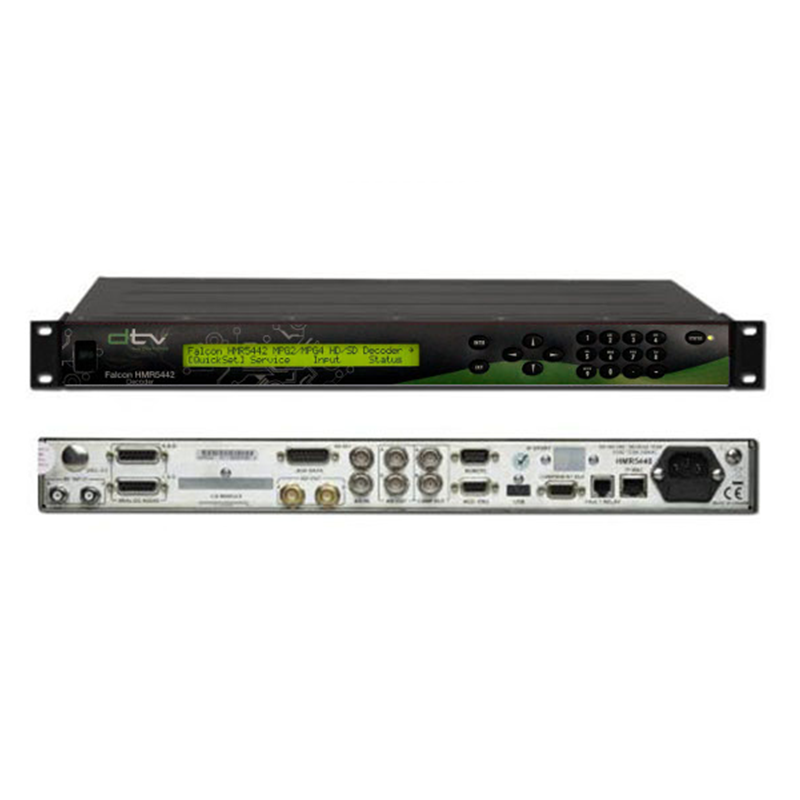

DTV Innovations Falcon HMR5440/HMR5442 Professional IRDs

DTV Innovations Falcon HMR5440/HMR5442 Professional IRDs

The DTV Innovations Falcon HMR Series includes the HMR5440 and HMR5442 professional integrated receiver/decoders for broadcast contribution and distribution. These compact, rugged IRDs support SD and HD video, MPEG-2 and MPEG-4 AVC/H.264 decoding, multiple input interfaces and BISS content protection.

Both models support DVB-ASI input with optional DVB-S/S2 satellite and MPEG transport stream over IP interfaces. Available outputs include SDI, HD-SDI, analog composite, component video and embedded or discrete audio. Front-panel controls, an embedded web interface and RS-232 provide flexible local and remote management.

The Falcon HMR5440 provides video resolution and aspect-ratio conversion, including HD-to-SD and SD-to-HD processing. The advanced HMR5442 adds MPEG-2 and MPEG-4 4:2:2 decoding, 10-bit MPEG-4 4:2:2 support, 1080p50/60 3G-HD-SDI and HDMI outputs, and AAC audio decoding.

Key Features

• Professional integrated receiver/decoder series

• Falcon HMR5440 and Falcon HMR5442 models

• SD and HD video decoding

• MPEG-2 and MPEG-4 AVC/H.264 support

• Automatic SD, HD, MPEG-2 and MPEG-4 detection

• 4:2:0 video decoding

• Advanced 4:2:2 decoding on the HMR5442

• 10-bit MPEG-4 4:2:2 decoding on the HMR5442

• 1080p50/60 decoding and output on the HMR5442

• SDI and HD-SDI video outputs

• 3G-HD-SDI and HDMI outputs on the HMR5442

• NTSC and PAL composite video outputs

• Analog component HD video output

• HD-to-SD and SD-to-HD resolution conversion

• 4:3 and 16:9 aspect-ratio conversion

• DVB-ASI input and active ASI loop output

• Optional DVB-S/S2 satellite receiver interface

• Optional MPEG transport stream over IP interface

• UDP, RTP and RTP with SMPTE 2022 FEC support

• Up to eight decoded audio channels

• Analog, digital and embedded audio outputs

• MPEG audio decoding

• AC-3, Dolby E and uncompressed audio support

• AAC audio decoding included with the HMR5442

• PGCA, BISS Mode 1 and BISS-E decryption

• Optional internal genlock and frame synchronization

• Lip synchronization maintained during frame sync

• Full front-panel operation

• Embedded web-browser control

• RS-232 command-line interface

• SNMP support

• 1 RU rack-mount chassis

• Companion receiver for DTV Innovations Gryphon encoders

• Made in the USA
