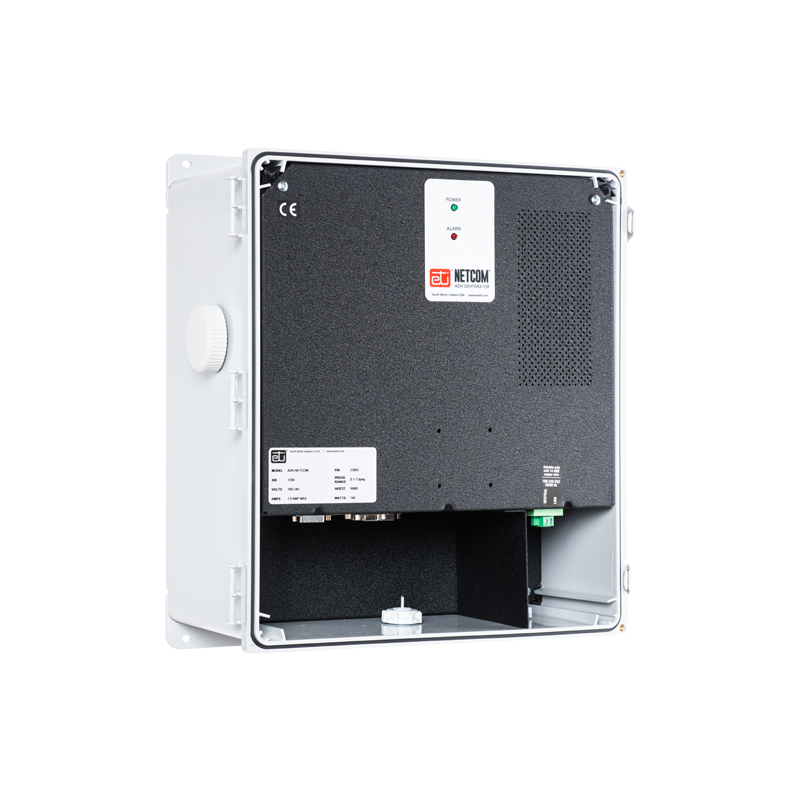

ETI ADH NETCOM NEMA Outdoor Automatic Waveguide Dehydrator

ETI ADH NETCOM NEMA Outdoor Automatic Waveguide Dehydrator

The ETI ADH NETCOM NEMA is an outdoor automatic air dehydrator that supplies dry, pressurized air to protect antenna waveguides, dielectric coaxial cables and other pressurized systems in harsh, remote and high-vibration environments.

The dehydrator combines the monitoring and control capabilities of the standard ADH NETCOM with a durable IP66/NEMA 4X enclosure. It supports remote operation through an Ethernet web interface or SNMP, while RS-422/485, RS-232 and programmable alarm relays provide compatibility with legacy monitoring systems.

A brushless dual-diaphragm compressor and demand-based desiccant regeneration provide quiet, energy-efficient operation. The pressure range, alarm levels and master/slave configuration are field programmable. Mil-Spec connector configurations are also available for specialized installations.

Model: ADH NETCOM NEMA
Application: Outdoor waveguide and coaxial-cable dehydration
Area of Use: Non-hazardous locations
Enclosure: IP66/NEMA 4X lockable polycarbonate enclosure
Pressure Range: 0.3-7.5 psig (20.68-517 mbar)
Pressure Adjustment: 0.01 psig (0.67 mbar) increments
Default Pressure: 0.5 psig (34.5 mbar)
Flow Rate: 25.4 scfh (12 lpm)
Maximum Dew Point: -40°F/-40°C
Regeneration Method: Automatic, demand based
Communications: Ethernet, HTTP web interface, SNMP, UDP, TFTP, RS-422/485 and RS-232
Alarm Outputs: Three programmable Form C, SPDT relays
Power Supply: 100-240 VAC, 50/60 Hz
Power Consumption: 150 W maximum
Operating Temperature: -40°F to 130°F (-40°C to 55°C)
Storage Temperature: -40°F to 150°F (-40°C to 60°C)
Discharge Port: 1/8-inch NPT with 3/8-inch and 1/4-inch hose barbs
Dimensions: 15.42 x 18.67 x 8.38 in. (391 x 474 x 211 mm)
Weight: 24 lb (10.9 kg)
Warranty: Two years

Available Configurations

• 25896: ADH NETCOM NEMA Automatic Dehydrator, 100-240 VAC
• 25921: ADH NETCOM NEMA Automatic Dehydrator with Mil-Spec Connectors, Type 1
• 25922: ADH NETCOM NEMA Automatic Dehydrator with Mil-Spec Connectors, Type 2

Optional Accessories

• 23739: Mil-Spec Connector Accessory Kit for Model 25896
• 23883: Mil-Spec Type 2 Kit

Key Features

• Supplies dry, pressurized air for antenna waveguides and coaxial cables

• IP66/NEMA 4X enclosure for outdoor and harsh-environment installations

• Suitable for mobile, remote and high-vibration applications

• Field-programmable pressure range from 0.3 to 7.5 psig

• Automatic demand-based regeneration

• Brushless dual-diaphragm compressor for long service life

• Remote monitoring and control through Ethernet

• Built-in web interface and SNMP support

• RS-422/485 and RS-232 interfaces for legacy systems

• Three programmable alarm relay outputs

• Configurable master/slave operation

• Field-upgradable software

• Optional Mil-Spec connector configurations

• Quiet, low-energy operation
