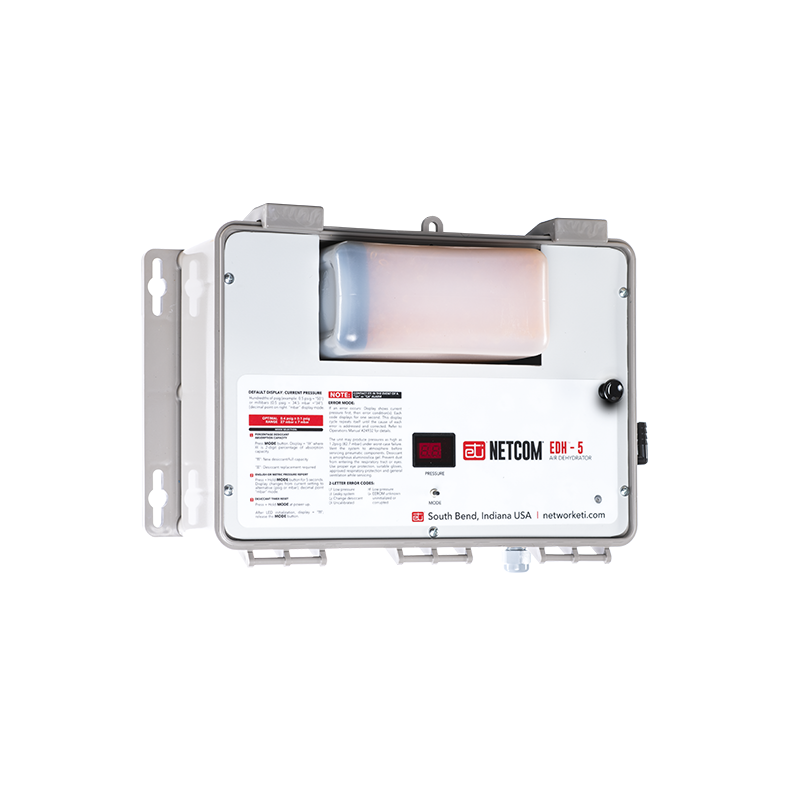

The ETI NETCOM EDH-5 is a compact, low-pressure air dehydrator designed to supply clean, dry air to small-volume antenna waveguides and coaxial-cable systems in indoor, outdoor, remote and mobile installations.

Well suited for Ku- and Ka-band applications, the EDH-5 provides an output pressure of 0.3-0.5 psig with a maximum flow rate of 4.77 scfh (2.25 lpm). Its microcontroller regulates pressure and manages dehydrator functions, while solid-state controls help ensure reliable operation.

A two-digit LED display provides pressure, internal temperature, flow rate, operating status, duty cycle and error-code information. The single desiccant container is accessible from the front for convenient replacement or manual regeneration. Continuous pump operation is limited to four hours to protect the dehydrator if a severe system leak occurs.

Model: EDH-5
Order Number: 24894
Application: Indoor and outdoor waveguide and coaxial-cable dehydration
Recommended Bands: Ku- and Ka-band
Dehydrator Type: Non-programmable, single-canister desiccant dehydrator
Output Pressure: 0.3-0.5 psig, 0.5 psig nominal (34.5 mbar)
Maximum Flow Rate: 4.77 scfh (2.25 lpm)
Standard System Capacity: 18 scf (510 liters)
Maximum System Capacity: 45 scf (1,274 liters)
Outlet Dew Point: -40°C with new or regenerated desiccant to -10°C when regeneration or replacement is required
Regeneration Method: Manual regeneration or desiccant replacement
Regeneration Indication: Desiccant color change and compressor runtime
Display: Two-digit LED display with selectable English or SI units
Displayed Information: Pressure, internal temperature, flow rate, status, duty cycle and error codes
Alarm Output: Relay, 2 A at 30 VDC
Relay Connection: 6-position terminal block
Supply Voltage: 100-240 VAC, 50/60 Hz, auto-selecting
Power Consumption: 20 W nominal, 110 W maximum at 120 VAC
Discharge Port: 1/8-inch NPT female port with 1/4-inch hose barb
Operating Temperature: -40°F to 130°F (-40°C to 55°C)
Height: 9.125 in. (232 mm)
Width: 11.5 in. (292 mm); 12.75 in. (324 mm) including mounting ears
Depth: 6.562 in. (167 mm)
Weight: 8 lb (3.6 kg)
Mounting: Wall, bulkhead, rack shelf or tabletop
Reliability: 100,000-hour MTBF
Noise Level: Up to 36 dB
Warranty: Two years

Replacement Part

• 18138: Replacement Desiccant

Key Features

• Supplies clean, dry air for small waveguide and coaxial-cable systems

• Suitable for indoor, outdoor, remote and mobile installations

• Designed for Ku- and Ka-band applications

• Output pressure adjustable from 0.3 to 0.5 psig

• Maximum flow rate of 4.77 scfh

• Microcontroller-based pressure regulation and system management

• Two-digit LED pressure and status display

• Selectable English or SI display units

• Displays pressure, temperature, flow rate, duty cycle and error codes

• Color-indicating desiccant simplifies inspection

• Front-accessible desiccant container

• Manual desiccant regeneration or replacement

• Four-hour pump runtime limit protects against severe system leaks

• Auto-selecting 100-240 VAC power supply

• Quiet operation up to 36 dB

• Compact, energy-efficient design

• Simple installation and maintenance
