ETI ASM-1 Automated Air Distribution Manifold

ETI ASM-1 Automated Air Distribution Manifold

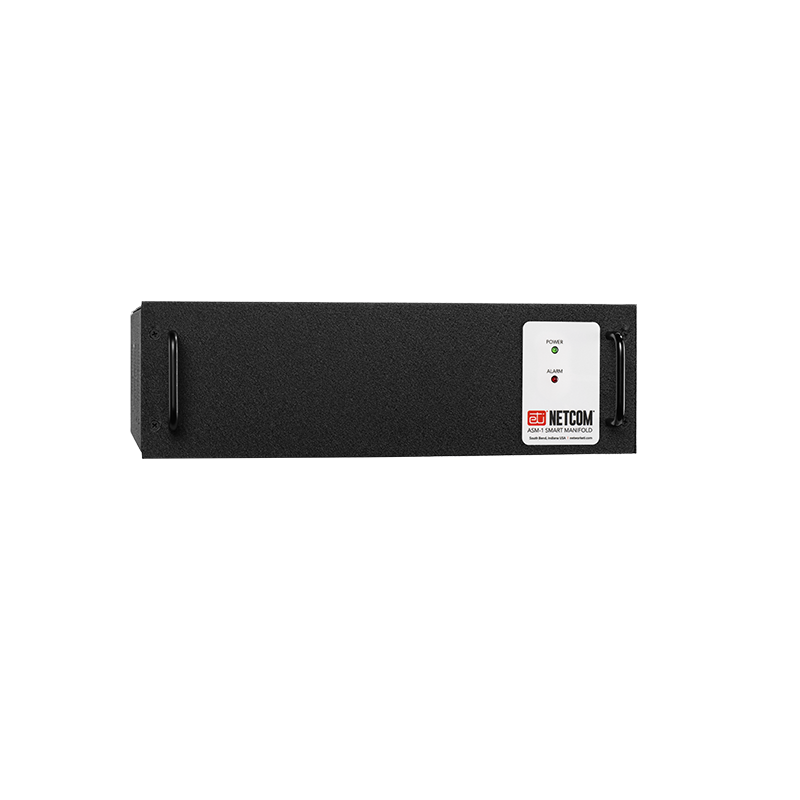

The ETI NETCOM ASM-1 Smart Manifold automatically distributes and monitors low-pressure dry air from one or more dehydrators to multiple antenna waveguides or transmission lines.

Seven of the ASM-1’s eight ports can be configured as air inputs, outputs or unused ports. The eighth port functions as a programmable pressure-relief valve that vents excess pressure caused by conditions such as solar heating or during system testing. The default configuration provides two inputs, five outputs and one pressure-relief port.

Continuous monitoring allows the ASM-1 to isolate a leaking transmission line while keeping the remaining lines pressurized. Automated line testing measures leak-down rates to help identify developing leaks and schedule maintenance before a critical failure occurs.

The ASM-1 can control multiple ETI ADH NETCOM dehydrators in parallel or redundant configurations. Parallel pumping increases dry-air capacity by operating multiple dehydrators together, while redundant pumping improves reliability by keeping one or more units on standby and alternating the primary dehydrator.

Model: ASM-1 Smart Manifold
Order Number: 23658
Application: Automated dry-air distribution and monitoring
Area of Use: Non-hazardous locations
Configurable Ports: Seven input, output or unused ports
Pressure-Relief Port: One programmable port
Default Port Configuration: Two inputs, five outputs and one pressure-relief port
Port Connections: Eight 1/8-inch NPT ports
Included Fittings: 3/8-inch and 1/4-inch hose barbs
Operating Pressure Range: 0.10-7.50 psig (7-517 mbar)
Maximum Pressure Setting: 0.20-7.50 psig, 0.50 psig default
Minimum Pressure Setting: 0.10-7.40 psig, 0.30 psig default
Pressure Adjustment: 0.01 psig (0.67 mbar) increments
Pressure-Relief Valve: 8 psig (552 mbar)
Communications: Ethernet, HTTP web interface, SNMP, UDP, TFTP, RS-422/485 and RS-232
Alarm Outputs: Three programmable Form C, SPDT relays
Parallel Pumping: User configurable
Redundant Pumping: User configurable
Supply Voltage: 100-240 VAC, 50/60 Hz
Optional DC Power: +/-20-75 VDC
Power Consumption: 60 W maximum
Operating Temperature: 32°F to 130°F (0°C to 55°C)
Storage Temperature: -40°F to 150°F (-40°C to 60°C)
Dimensions: 17 x 12 x 5.25 in. (432 x 305 x 133 mm)
Weight: 11 lb (5 kg)
Mounting: Dual-post rack, single-post rack or wall mount
Rack Space: 3U
Approvals: UL Type 1950 and IEC 950 evaluated
Warranty: Two years

Key Features

• Distributes dry air to multiple waveguides or transmission lines

• Supports one or more dry-air sources

• Seven configurable input or output ports

• Programmable pressure-relief valve

• Continuous pressure and system-status monitoring

• Monitors pressure and leak-down rate for each connected line

• Automatically isolates leaking lines

• Periodic automated line testing supports preventive maintenance

• Parallel pumping increases dry-air capacity

• Redundant pumping improves system reliability

• Controls multiple ETI ADH NETCOM dehydrators

• Remote monitoring and control through Ethernet

• Built-in web interface and SNMP support

• RS-422/485 and RS-232 legacy interfaces

• Three programmable alarm relay outputs

• Field-configurable pressure and alarm settings

• Field-upgradable software

• Rack or wall mounting

• Low-energy operation
