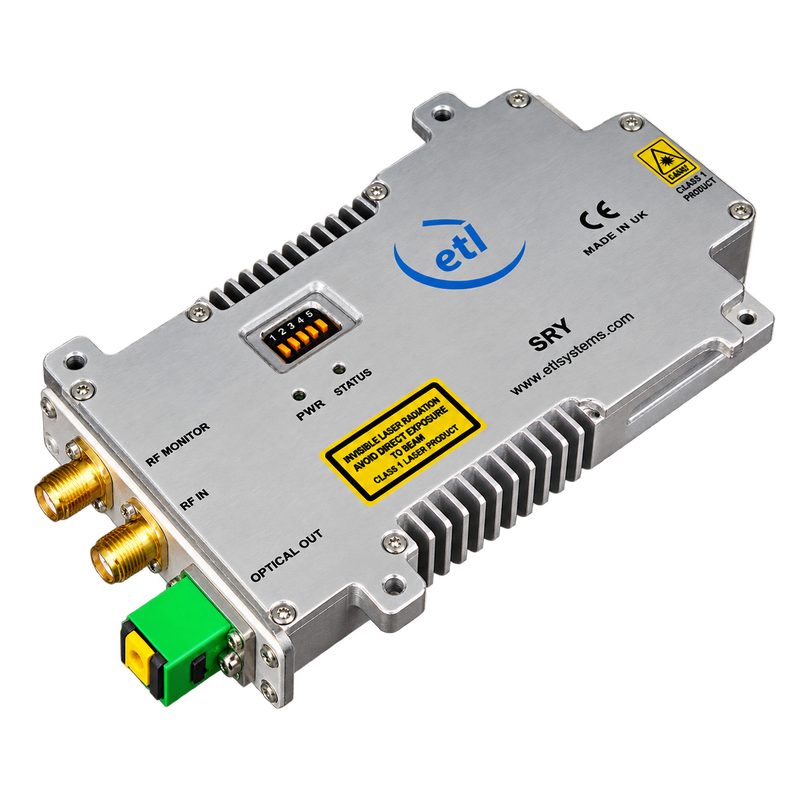

The ETL Systems StingRay SRY-TX-B2-403 is a standalone broadband RF over fiber transmitter with a 1310 nm optical output, RF monitoring port and switchable LNB power.

Designed for single-mode fiber links, the SRY-TX-B2-403 converts broadband RF signals into an optical signal using a DFB laser with an optical isolator. Its compact EMC-sealed housing supports tapped-screw and through-hole mounting. Local DIP switches control LNB power, voltage, 22 kHz tone and gain mode, while indicator lights show power and module status. Pair it with the SRY-RX-B2-404 receiver for a complete RF over fiber link.

Frequency Range: 50–2450 MHz
RF Input Range: −60 to −10 dBm total power
RF Connector Options: SMA 50 Ω, BNC 75 Ω or F-type 75 Ω; female connectors
RF Monitoring: Module-mounted monitor port, −20 dB ±3 dB
Optical Output: 1310 ±10 nm; DFB laser with optical isolator; output power 4.5 ±2.5 dBm
Optical Connector Options: FC/APC or SC/APC; single-mode fiber with angle-polished connectors
Link Flatness: ±2.0 dB over 50–200 MHz and 850–2450 MHz, measured with the SRY-RX-B2-404 receiver over a 10 km fiber link in fixed-gain mode
RF Performance: OIP3: +17 dBm typ.; noise figure: 10 dB typ.; SFDR: 105 dB/Hz⅔ typ., under specified link test conditions
LNB Power & Tone: Switchable 13/18 VDC ±5%, up to 500 mA; selectable 22 kHz tone
Gain Control: Factory-set automatic gain control or fixed gain, selected by DIP switch
Power Supply: 12 VDC ±1 V; single or dual redundant power inputs
Power Consumption: 15 W typ. with 18 V/500 mA LNB powering
Control & Status: Five-position internal DIP switch; power indicator and green/red status indicators; monitors laser optical output, amplifier stages and module temperature
Housing & Mounting: Compact EMC-sealed standalone housing; tapped-screw and through-hole mounting options
Operating Environment: −20°C to +65°C; 20–90% RH, non-condensing; indoor use, or outdoor installation within an ETL ODU enclosure

Key Features

• Standalone broadband RF over fiber transmitter

• 1310 nm DFB laser with optical isolator

• Dedicated RF monitoring port

• Switchable 13/18 VDC LNB power and 22 kHz tone

• Automatic or fixed-gain operation

• Single or dual redundant DC powering

• Flexible mounting for equipment integration

The matching SRY-RX-B2-404 receiver, fiber cable, external power supply and outdoor enclosure are sold separately unless included in the quoted configuration. Please specify the required RF and optical connectors when requesting a quotation. Cooling requirements depend on the installation.
