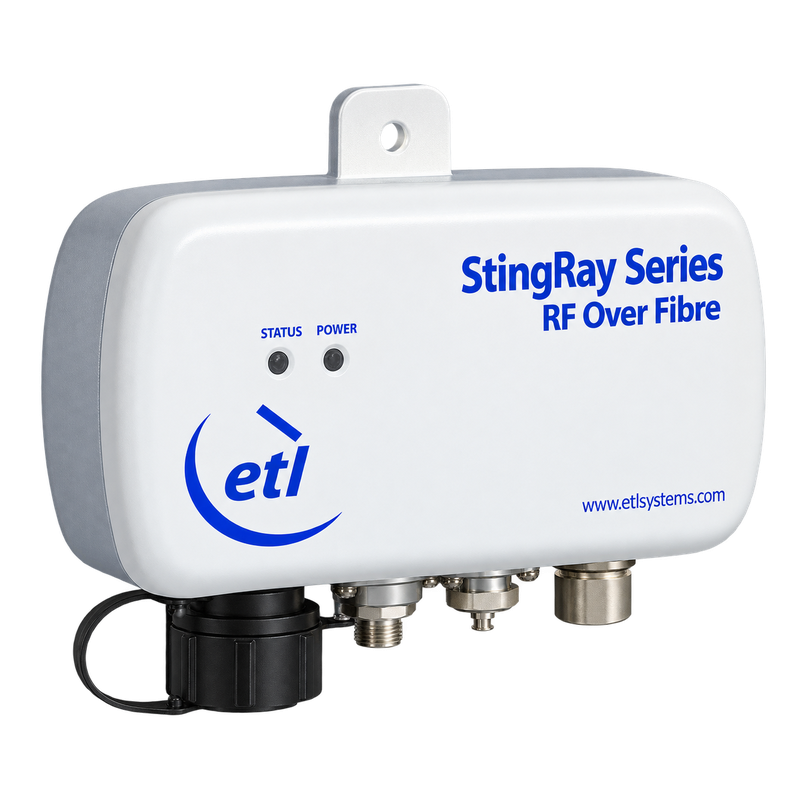

ETL Systems StingRay SRY-TX-B2-925 Outdoor RF over Fiber Transmitter

ETL Systems StingRay SRY-TX-B2-925 Outdoor RF over Fiber Transmitter

The ETL Systems StingRay SRY-TX-B2-925 is an IP65 outdoor RF over fiber transmitter covering 50–2450 MHz, with a 1310 nm optical output and switchable LNB power.

Designed for satellite RF signal transport over single-mode fiber, the SRY-TX-B2-925 houses one optical transmitter in a compact weatherproof enclosure. Its DFB laser incorporates a two-stage optical isolator for improved performance. The unit supports pole or wall mounting, automatic or fixed-gain operation, and 13/18 VDC LNB powering with a selectable 22 kHz tone. External power supplies support dual redundant operation.

Frequency Range: 50–2450 MHz
RF Input Range: −60 to −10 dBm total power
RF Connector Options: N-type 50 Ω or F-type 75 Ω
Gain Flatness: ±2.0 dB across the operating band
RF Performance: OIP3: +17 dBm typ.; noise figure: 12 dB typ.; SFDR: 105 dB/Hz⅔ typ., under specified link test conditions
Optical Output: 1310 ±10 nm; output power 3.8 ±2.5 dBm
Laser & Fiber Interface: DFB laser with two-stage optical isolator; Senko IP-SC/APC connector; single-mode fiber
LNB Power & Tone: Selectable 13/18 VDC, up to 500 mA; selectable 22 kHz tone; short-circuit protection
Gain & Local Control: Factory-set automatic gain control or fixed gain; switches select LNB power, voltage, tone and gain mode
Power Supply: 12 VDC; compatible with ETL SRY-12-916-0KXX external PSU; LEMO 1K-series two-pin power connection
Power Consumption & Redundancy: 15 W maximum with 18 V/500 mA LNB powering; supports dual redundant hot-swappable external PSUs
Status & Monitoring: Power and green/red status indicators; monitors laser optical output, amplifier stages and temperature; remote monitoring/control availability to be confirmed
Enclosure & Mounting: IP65 weatherproof enclosure; pole-band or wall-bolt mounting; install out of direct sunlight
Temperature & Altitude: Operating: −20°C to +55°C; storage: −40°C to +85°C; altitude up to 10,000 ft above mean sea level
Dimensions & Reliability: 85 mm high × 50 mm deep × 165 mm wide, excluding mounting flanges and connectors; MTBF >200,000 hours

Key Features

• Complete outdoor RF over fiber transmitter

• Broadband RF coverage from 50 to 2450 MHz

• Compact IP65 weatherproof enclosure

• 1310 nm DFB laser with two-stage optical isolator

• Switchable LNB voltage and 22 kHz tone

• Automatic or fixed-gain operation

• Supports dual redundant external power supplies

• Flexible pole or wall mounting

The receiver, fiber cable and external power supplies are sold separately unless included in the quoted configuration. Please specify the RF connector and required power-supply configuration when requesting a quotation. Confirm remote monitoring/control requirements before ordering.
