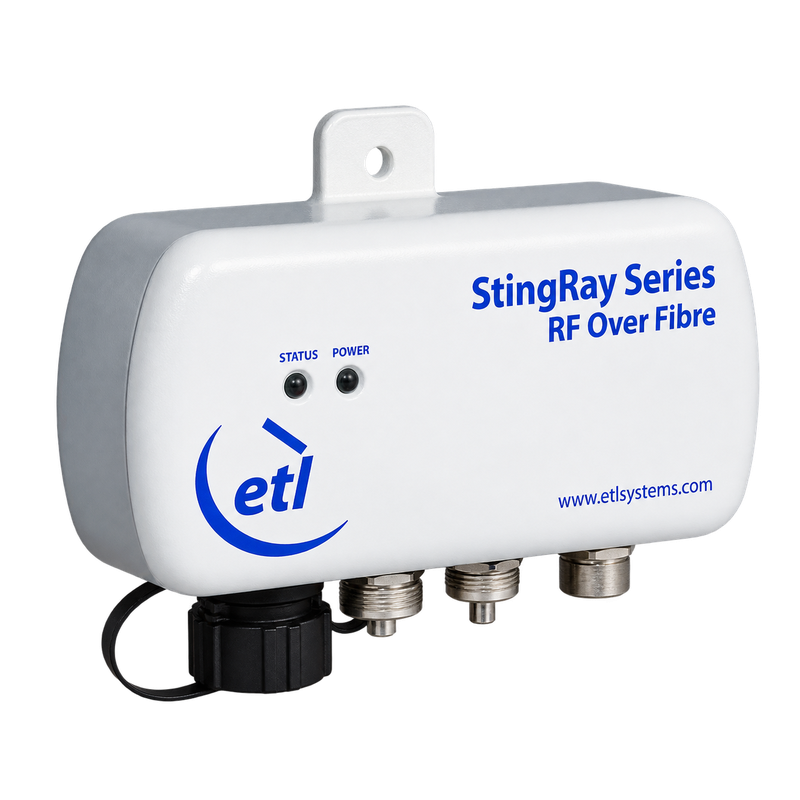

ETL Systems StingRay SRY-RX-B2-926 Outdoor RF over Fiber Receiver

ETL Systems StingRay SRY-RX-B2-926 Outdoor RF over Fiber Receiver

The ETL Systems StingRay SRY-RX-B2-926 is an IP65 outdoor RF over fiber receiver covering 50–2450 MHz, with adjustable RF output and support for dual redundant external power supplies.

Designed for satellite RF signal transport over single-mode fiber, the SRY-RX-B2-926 converts optical signals from 1100–1650 nm into broadband RF. Its compact weatherproof enclosure supports pole or wall mounting. Local switches select output power and automatic or fixed-gain operation, while indicators display power and module status. Pair it with the SRY-TX-B2-925 outdoor transmitter for a complete RF over fiber link.

Frequency Range: 50–2450 MHz
RF Output Range: −30 to −10 dBm total power
RF Connector Options: N-type 50 Ω or F-type 75 Ω
Gain & AGC Flatness: ±2.0 dB across the operating band; AGC flatness specified with transmitter input from −40 to −10 dBm
RF Performance: OIP3: +17 dBm typ.; noise figure: 12 dB typ.; SFDR: 105 dB/Hz⅔ typ., under specified link test conditions
Optical Input: 1100–1650 nm; optical power range 0 to +4.5 dBm
Fiber Interface: Senko IP-SC/APC connector; single-mode fiber
Gain & Output Control: Automatic gain control or fixed gain; output power selected by local switches
Power Supply: 12 VDC; compatible with ETL SRY-12-916-0KXX external PSU; LEMO 1K-series two-pin power connection
Power Consumption & Redundancy: 4 W maximum; supports dual redundant hot-swappable external PSUs
Status & Monitoring: Power and green/red status indicators; monitors optical input power, amplifier stages and module temperature; remote monitoring/control availability to be confirmed
Enclosure & Mounting: IP65 weatherproof enclosure; pole-band or wall-bolt mounting; install out of direct sunlight
Temperature & Altitude: Operating: −20°C to +55°C; storage: −40°C to +85°C; altitude up to 10,000 ft above mean sea level
Dimensions & Reliability: 85 mm high × 50 mm deep × 165 mm wide, excluding mounting flanges and connectors; MTBF >250,000 hours

Key Features

• Complete outdoor RF over fiber receiver

• Broadband RF coverage from 50 to 2450 MHz

• Optical input from 1100 to 1650 nm

• Compact IP65 weatherproof enclosure

• Selectable RF output power

• Automatic or fixed-gain operation

• Low power consumption of 4 W maximum

• Supports dual redundant external power supplies

• Flexible pole or wall mounting

The matching SRY-TX-B2-925 transmitter, fiber cable and external power supplies are sold separately unless included in the quoted configuration. Please specify the RF connector and required power-supply configuration when requesting a quotation. Confirm remote monitoring/control requirements before ordering.
