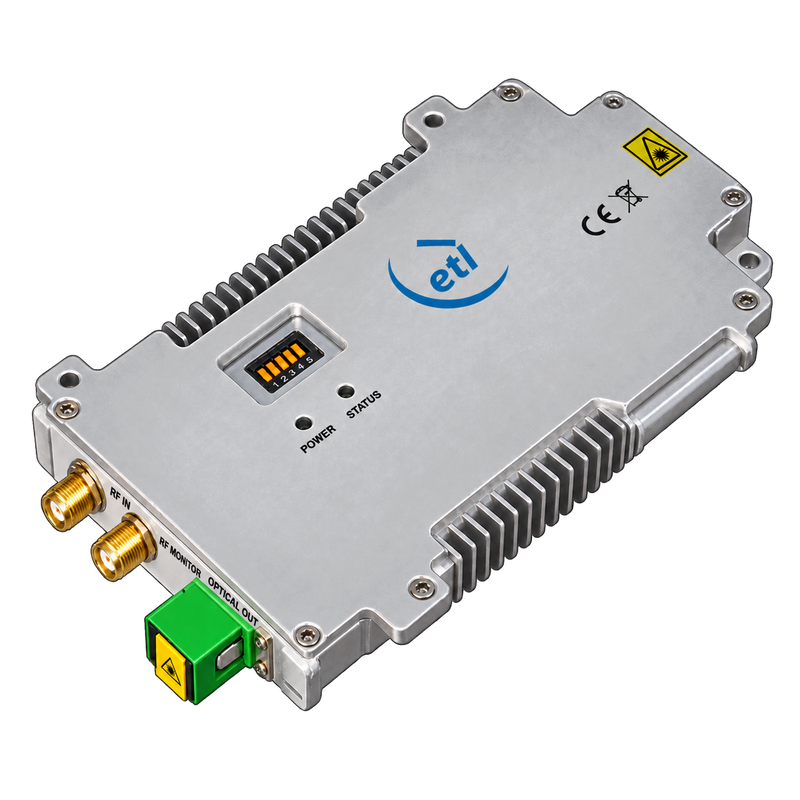

The ETL Systems StingRay SRY-TX-L1-401 is a standalone 850–2450 MHz L-band RF over fiber transmitter with a 1310 nm optical output, RF monitoring port and switchable LNB power.

Designed for satellite L-band signal transport over single-mode fiber, the SRY-TX-L1-401 uses a DFB laser with an optical isolator. Its compact EMC-sealed housing supports tapped-screw and through-hole mounting. Internal DIP switches select LNB power, voltage, 22 kHz tone and automatic or fixed-gain operation. Pair it with the SRY-RX-L1-402 receiver for a complete RF over fiber link.

Frequency Range: 850–2450 MHz
RF Input Range: −60 to −10 dBm total power
RF Connector Options: SMA 50 Ω, BNC 75 Ω or F-type 75 Ω; female connectors; DC-blocked RF ports
RF Monitoring: Module-mounted monitor port, −20 dB ±3 dB
Optical Output: 1310 ±10 nm; DFB laser with optical isolator; output power 4.5 ±2.5 dBm
Optical Connector Options: FC/APC or SC/APC; single-mode fiber with angle-polished connectors
Link Flatness: ±1.2 dB over 850–2150 MHz; ±1.7 dB over 850–2450 MHz, measured with the SRY-RX-L1-402 receiver over a 10 km fiber link in fixed-gain mode
RF Performance: OIP3: +17 dBm typ.; noise figure: 10 dB typ.; SFDR: 105 dB/Hz⅔ typ., under specified link test conditions
LNB Power & Tone: Switchable 13/18 VDC ±5%, up to 500 mA; selectable 22 kHz tone
Gain Control: Factory-set automatic gain control or fixed gain, selected by DIP switch
Power Supply: 12 VDC ±1 V; single or dual redundant power
Power Consumption: 15 W typ. with 18 V/500 mA LNB powering
Control & Status: Five-position internal DIP switch; power and green/red status indicators; monitors laser optical output, amplifier stages and module temperature
Housing & Reliability: Compact EMC-sealed standalone housing; tapped-screw and through-hole mounting; MTBF >200,000 hours
Operating Environment: −20°C to +65°C; 20–90% RH, non-condensing; indoor use, or outdoor installation within an ETL ODU enclosure

Key Features

• L-band RF transport from 850 to 2450 MHz

• 1310 nm DFB laser with optical isolator

• Dedicated RF monitoring port

• Switchable 13/18 VDC LNB power and 22 kHz tone

• Automatic or fixed-gain operation

• Supports single or dual redundant powering

• Compact housing with flexible mounting

The matching SRY-RX-L1-402 receiver, fiber cable, external power supply and outdoor enclosure are sold separately unless included in the quoted configuration. Please specify the required RF and optical connectors when requesting a quotation. Cooling requirements depend on the installation.
