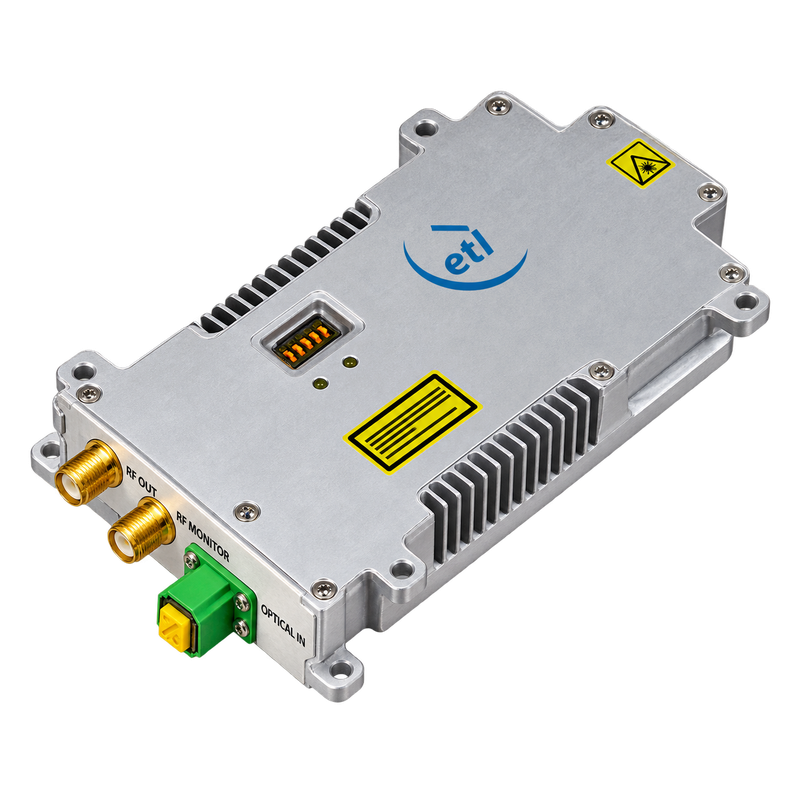

ETL Systems StingRay SRY-RX-L1-402 L-Band RF over Fiber Receiver

ETL Systems StingRay SRY-RX-L1-402 L-Band RF over Fiber Receiver

The ETL Systems StingRay SRY-RX-L1-402 is a standalone 850–2450 MHz L-band RF over fiber receiver with adjustable RF output, a monitoring port and 4 W typ. power consumption.

Designed for single-mode fiber links, the SRY-RX-L1-402 converts optical signals from 1100–1650 nm into L-band RF and is optimized for 1310 and 1550 nm. Its compact EMC-sealed housing supports tapped-screw and through-hole mounting. Internal DIP switches select output power and automatic or fixed-gain operation. Pair it with the SRY-TX-L1-401 transmitter for a complete RF over fiber link.

Frequency Range: 850–2450 MHz
RF Output Range: Nominally −30 to −10 dBm total power; minimum selectable level to be confirmed
RF Connector Options: SMA 50 Ω, BNC 75 Ω or F-type 75 Ω; female connectors; DC-blocked RF ports
RF Monitoring: Module-mounted monitor port, −20 dB ±3 dB
Optical Input: 1100–1650 nm; optimized for 1310 and 1550 nm
Optical Input Power: 0 to +4.5 dBm operating range; +10 dBm maximum
Optical Connector Options: FC/APC or SC/APC; single-mode fiber with angle-polished connectors
Link Flatness: ±1.2 dB over 850–2150 MHz; ±1.7 dB over 850–2450 MHz, under specified 10 km link test conditions in fixed-gain mode
RF Performance: OIP3: +17 dBm typ.; noise figure: 12 dB typ.; SFDR: 105 dB/Hz⅔ typ., under specified link test conditions
Gain & Output Control: Automatic gain control or fixed gain; output level selected by internal DIP switches
Power Supply & Consumption: 12 VDC ±1 V; single or dual redundant power; 4 W typ.
Control & Status: Internal DIP switches; power and green/red status indicators; monitors amplifier stages and module temperature
Housing & Reliability: Compact EMC-sealed standalone housing; tapped-screw and through-hole mounting; MTBF >250,000 hours
Temperature: Operating: −40°C to +65°C; storage: −40°C to +90°C
Installation Environment: Indoor use; 20–90% RH, non-condensing; outdoor installation only within an ETL ODU enclosure

Key Features

• L-band RF reception from 850 to 2450 MHz

• Optical input optimized for 1310 and 1550 nm

• Adjustable RF output power

• Automatic or fixed-gain operation

• Dedicated RF monitoring port

• Low power consumption of 4 W typ.

• Operating temperature down to −40°C

• Compact housing with flexible mounting

The matching SRY-TX-L1-401 transmitter, fiber cable, external power supply and outdoor enclosure are sold separately unless included in the quoted configuration. Please specify the required RF and optical connectors when requesting a quotation. Cooling requirements depend on the installation.
