ETL Systems StingRay SRY-RX-L1-924 Outdoor L-Band RF over Fiber Receiver

ETL Systems StingRay SRY-RX-L1-924 Outdoor L-Band RF over Fiber Receiver

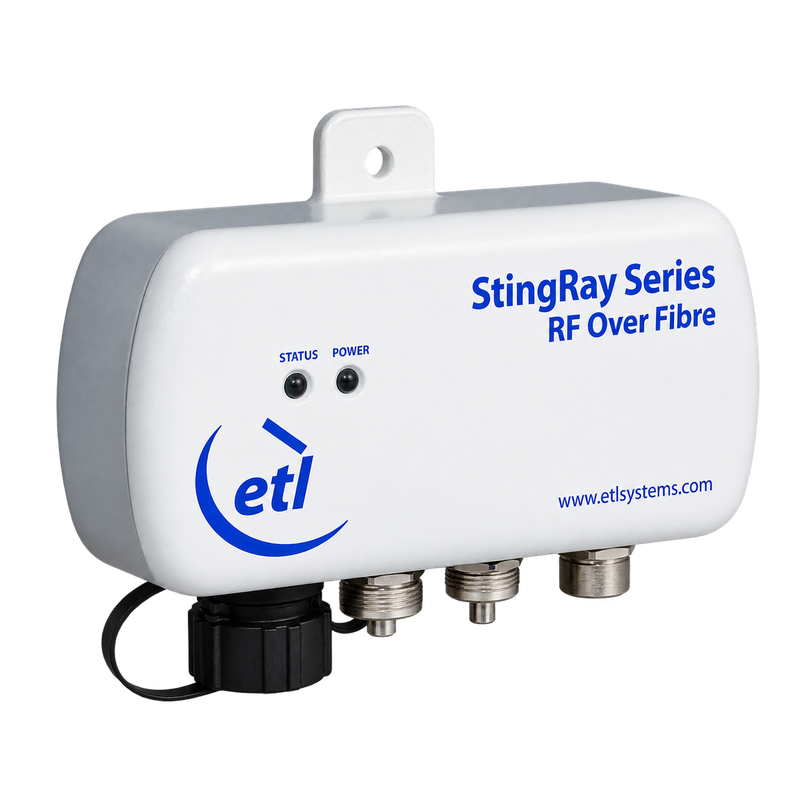

The ETL Systems StingRay SRY-RX-L1-924 converts an incoming optical signal into an L-band RF output for satellite signal distribution. Its compact IP65 enclosure supports pole or wall mounting for outdoor installations, with 50Ω N-type or 75Ω F-type RF connector options and a weatherproof Senko IP-SC/APC optical connection.

Automatic gain control maintains the factory-set output level, with a switch option to fix the gain after setup. Module monitoring covers optical input power, amplifier status, and temperature, while local indicators show power, normal operation, and alarms. Dual redundant external power supplies are supported for applications requiring power redundancy.

Model: SRY-RX-L1-924

Product Type: Outdoor L-band RF over fiber receiver
Frequency Range: 850–2450 MHz
Optical Wavelength Range: 1100–1650 nm
RF Connector Options: 50Ω N-type or 75Ω F-type
Optical Connector: Senko IP-SC/APC, single-mode fiber
Gain Flatness: ±2.0 dB across the band
OIP3: +17 dBm typ.; +14 dBm worst case
Noise Figure: 12 dB typ.; 15 dB worst case
SFDR: 105 dB/Hz²⁄³ typ.; 100 dB/Hz²⁄³ min.
Gain Control: Factory-set AGC with fixed-gain selection
Power Supply: 12 V DC; 4 W max.
Enclosure Rating: IP65
Operating Temperature: −20°C to +55°C
Dimensions: 85 H × 165 W × 50 D mm, excluding mounting flanges and connectors

Key Features

• Extended L-band reception for RF over fiber signal distribution.

• Weatherproof enclosure with pole or wall mounting options.

• Optical input power, amplifier status, and temperature monitoring.

• Local power, status, and alarm indicators.

• Support for dual redundant, hot-swappable external power supplies.

• MTBF greater than 250,000 hours.

External power supplies are sold separately. Use with PSU SRY-12-916-0KXX. Contact Esatcom Inc. for remote monitoring and control requirements. Install out of direct sunlight.
