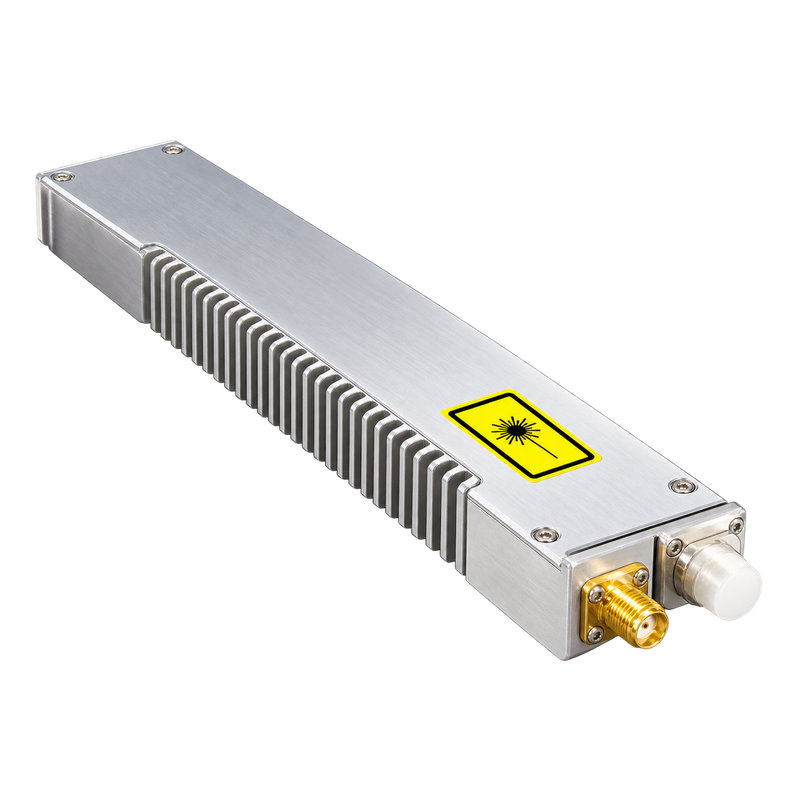

The ETL Systems StingRay SRY-G1S-TS6-161 transmitter and SRY-G1S-RS6-162 receiver provide RF over fiber transport across 500–3150 MHz for satellite communications and RF signal distribution. Each module occupies one slot in a compatible GENUS 1U chassis, supporting compact installations and mixed configurations with other GENUS RF modules.

Both models offer manual, automatic, and fixed gain modes, with a 60 dB manual adjustment range in 0.5 dB steps. The transmitter features a 1310 nm DFB laser with an optical isolator and supplies selectable 13/18 V LNB power with a 22 kHz tone. The receiver accepts optical wavelengths from 1100–1650 nm, optimized for 1310 nm and 1550 nm.

A compatible chassis provides local touchscreen and remote monitoring and control, including SNMPv3 and HTTPS. Optional chassis reference distribution enables adjustable 10 MHz reference injection onto the RF feed.

Transmitter Model: SRY-G1S-TS6-161
Receiver Model: SRY-G1S-RS6-162
Frequency Range: 500–3150 MHz
Fiber Link Distance: Up to 10 km
Chassis Compatibility: GENUS 1U; one slot per module
Gain Control: Manual gain control, automatic gain control, and fixed gain
Manual Gain Range: 60 dB in 0.5 dB steps
Gain Flatness: ±2.0 dB across 500–3150 MHz; ±1.5 dB across 850–2150 MHz; ±0.25 dB over any 36 MHz, in fixed gain mode
OIP3: +20 dBm typ. across 500–3150 MHz; +23 dBm typ. across 850–2150 MHz
Noise Figure: 9 dB typ.; 12 dB worst case
Optical Wavelength: TX: 1310 ±10 nm; RX: 1100–1650 nm
Connector Options: SMA 50Ω, BNC 50Ω, BNC 75Ω, or F-type 75Ω RF; FC/APC or SC/APC optical
LNB Power: Transmitter only; 13/18 V ±5%, 500 mA max., with 22 kHz tone
Power Consumption: TX: 15 W typ., including 18 V/500 mA LNB power; RX: 4 W typ.
Module Dimensions / Weight: 19 × 38 × 253 mm; 0.2 kg

Key Features

• Wide frequency coverage spanning L-band and S-band applications.

• Single-mode fiber transport for links up to 10 km.

• Transmitter optical isolator for improved performance.

• Optional 10 MHz reference injection, adjustable from −10 to +10 dBm through the chassis.

• Hot-swappable modules with MTBF greater than 200,000 hours.

• Local and remote control through a compatible GENUS chassis.

Transmitter and receiver modules are ordered separately. Compatible GENUS chassis and optional 10 MHz reference distribution are sold separately unless included in the quoted configuration. Specify RF and optical connector options when requesting a quotation. Total available LNB power depends on the chassis configuration and number of installed modules.
