ETL Systems StingRay SRY-G2S-TS6-313 / RS6-314 Dual S-Band RF over Fiber Modules

ETL Systems StingRay SRY-G2S-TS6-313 / RS6-314 Dual S-Band RF over Fiber Modules

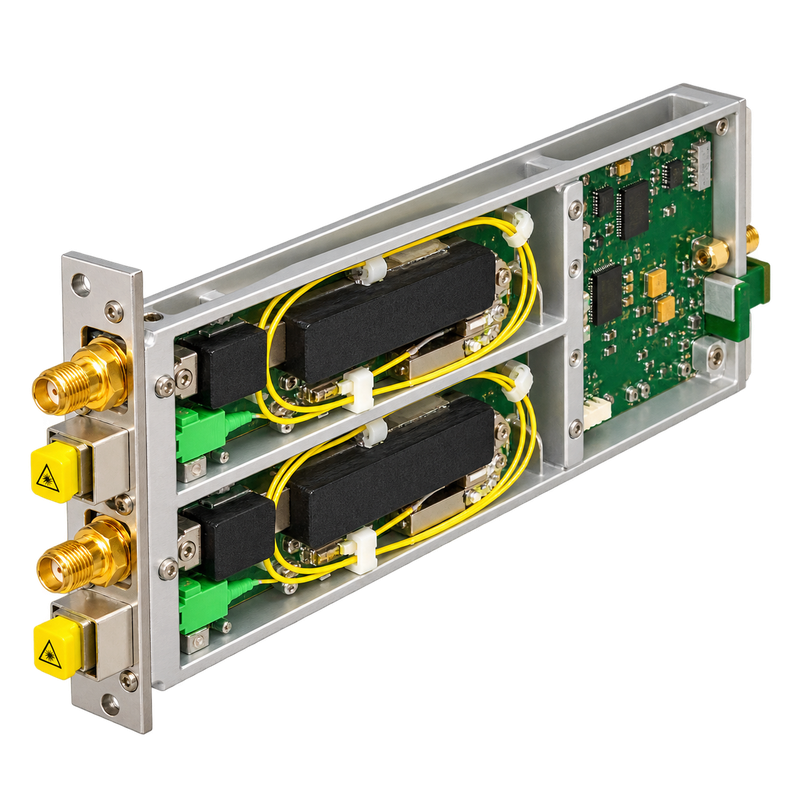

The ETL Systems StingRay SRY-G2S-TS6-313 dual transmitter and SRY-G2S-RS6-314 dual receiver provide two RF over fiber channels in a single GENUS 2U chassis slot. Covering 500–3150 MHz, these modules support satellite communications and RF signal distribution where channel density and flexible gain control are required.

Both models offer manual, automatic, and fixed gain modes, with a 60 dB manual adjustment range in 0.5 dB steps. The transmitter uses 1310 nm DFB lasers with optical isolation and supports selectable 13/18 V LNB power with a 22 kHz tone. The receiver accepts optical wavelengths from 1100–1650 nm, optimized for 1310 nm and 1550 nm.

A compatible GENUS chassis provides local touchscreen and remote monitoring and control, including SNMPv3 and HTTPS. Optional chassis reference distribution supports internal or external 10 MHz reference injection onto the RF feed.

Dual Transmitter Model: SRY-G2S-TS6-313
Dual Receiver Model: SRY-G2S-RS6-314
Channel Capacity: Two transmit or two receive channels per module
Frequency Range: 500–3150 MHz
Fiber Link Distance: Up to 10 km
Chassis Compatibility: GENUS 2U; one slot per dual module
Gain Control: Manual gain control, automatic gain control, and fixed gain
Manual Gain Range: 60 dB in 0.5 dB steps
Gain Flatness: ±2.0 dB across 500–3150 MHz; ±1.5 dB across 850–2150 MHz; ±0.25 dB over any 36 MHz, in fixed gain mode
OIP3: +20 dBm typ. across 500–3150 MHz; +23 dBm typ. across 850–2150 MHz
Noise Figure: 9 dB typ.; 12 dB worst case
Optical Wavelength: TX: 1310 ±10 nm; RX: 1100–1650 nm
Connector Options: SMA 50Ω, BNC 50Ω, BNC 75Ω, or F-type 75Ω RF; FC/APC or SC/APC optical
LNB Power: Transmitter only; 13/18 V ±5%, 500 mA max., with 22 kHz tone
Power Consumption: Dual TX: 30 W typ., with LNB power; dual RX: 8 W typ.

Key Features

• Two RF over fiber channels in one GENUS 2U chassis slot.

• Wide frequency coverage spanning L-band and S-band applications.

• Single-mode fiber transport for links up to 10 km.

• Transmitter optical isolation for improved performance.

• Optional 10 MHz reference injection, adjustable from −10 to +10 dBm through the chassis.

• Hot-swappable modules.

• MTBF greater than 200,000 hours for the transmitter and 250,000 hours for the receiver.

• Local and remote control through a compatible GENUS chassis.

Dual transmitter and dual receiver modules are ordered separately. Compatible GENUS chassis and optional 10 MHz reference distribution are sold separately unless included in the quoted configuration. Specify RF and optical connector options when requesting a quotation. Total available LNB power depends on the chassis configuration and number of installed modules.
