ETL Systems StingRay SRY-G2S-TY-315 / RY-316 10 MHz RF over Fiber Modules

ETL Systems StingRay SRY-G2S-TY-315 / RY-316 10 MHz RF over Fiber Modules

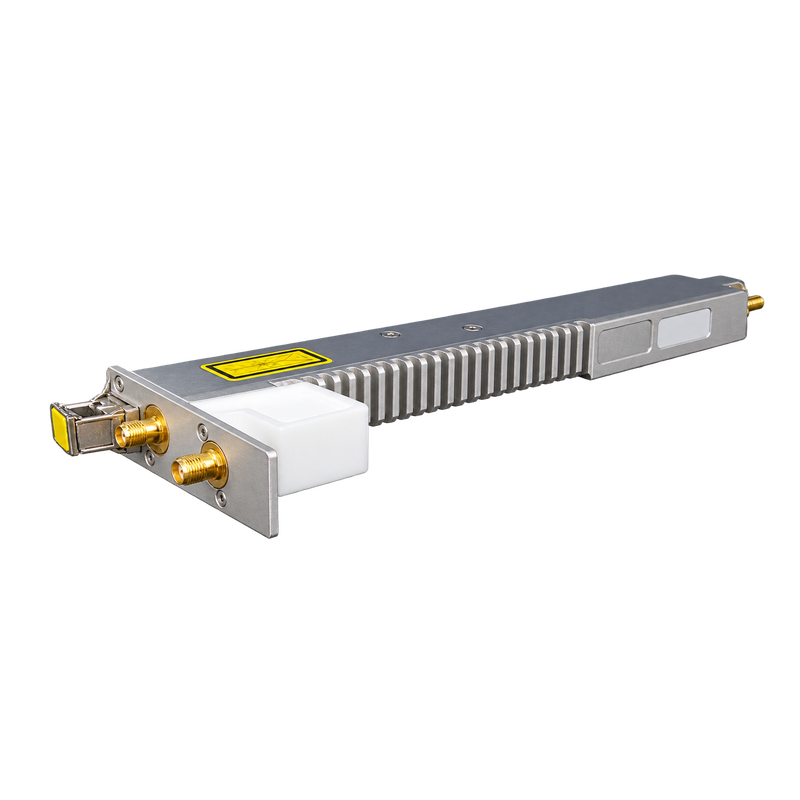

The ETL Systems StingRay SRY-G2S-TY-315 transmitter and SRY-G2S-RY-316 receiver transport a 10 MHz reference signal over single-mode optical fiber. Designed for reference distribution in satellite communications and RF systems, these modules provide a nominal link range of 10 km with ultra-low phase noise performance.

Each module occupies one slot in a compatible GENUS 2U chassis. Manual, automatic, and fixed gain modes support signal-level management, with specified AGC input and output levels from 0 to +12 dBm. Dedicated SMA RF monitor ports allow signal checks. The transmitter uses a 1310 nm DFB laser, while the receiver accepts optical wavelengths from 1100–1650 nm, optimized for 1310 nm and 1550 nm.

Compatible GENUS chassis provide local touchscreen and remote monitoring and control through SNMPv3 and HTTPS. Hot-swappable construction supports module servicing and flexible configurations alongside other compatible GENUS RF functions.

Transmitter Model: SRY-G2S-TY-315
Receiver Model: SRY-G2S-RY-316
Frequency Range: 10 MHz
Nominal Fiber Link Range: 10 km
Chassis Compatibility: GENUS 2U; one slot per module
RF Connector Options: SMA 50Ω or BNC 50Ω
RF Monitor Port: SMA 50Ω; −20 dBc ±3 dB
Gain Control: Manual gain control, automatic gain control, and fixed gain
AGC Input Level Range: 0 to +12 dBm; levels include noise
AGC Output Level Range: 0 to +12 dBm; levels include noise
Typical Phase Noise: −132 dBc/Hz at 1 Hz offset; −144 dBc/Hz at 10 Hz; −150 dBc/Hz at 1 kHz
Optical Wavelength: TX: 1310 ±10 nm; RX: 1100–1650 nm
Optical Power: TX output: +5.5 ±2 dBm; RX input: 0 to +7 dBm
Optical Connector Options: FC/APC or SC/APC; single-mode fiber
Power Consumption: TX: 5 W typ.; RX: 3 W typ.
Installation Environment: Indoor use

Key Features

• Dedicated optical transport for 10 MHz reference signals.

• Ultra-low phase noise for reference distribution applications.

• Nominal 10 km fiber link range.

• Dedicated RF monitor ports for signal testing.

• Compact, single-slot GENUS 2U modules.

• Hot-swappable construction.

• Local and remote monitoring and control through a compatible chassis.

Transmitter and receiver modules are ordered separately. Compatible GENUS chassis and reference sources are sold separately unless included in the quoted configuration. These modules transport a supplied 10 MHz signal; they do not generate a reference independently. Specify RF and optical connector options when requesting a quotation.
