ETL Systems StingRay SRY-TX-Y-481 Standalone 10 MHz RF over Fiber Transmitter

ETL Systems StingRay SRY-TX-Y-481 Standalone 10 MHz RF over Fiber Transmitter

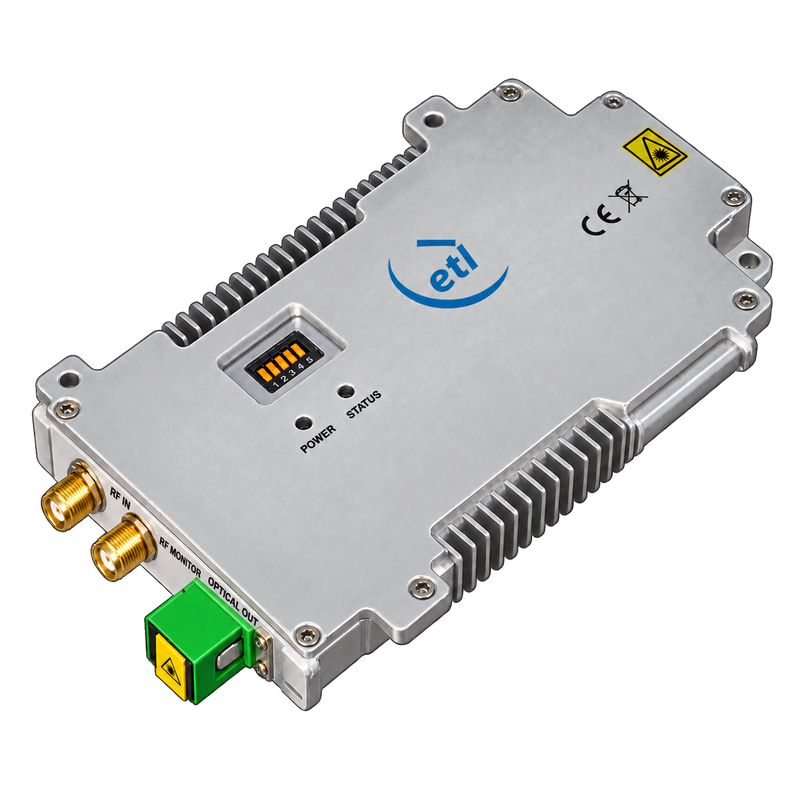

The ETL Systems StingRay SRY-TX-Y-481 converts a supplied 10 MHz reference signal into a 1310 nm optical signal for transport over single-mode fiber. Its compact EMC-sealed standalone housing supports reference distribution in satellite communications and RF systems.

The transmitter accepts RF input levels from 0 to +15 dBm and features a DFB laser with a two-stage optical isolator. An RF monitor port supports signal checks, while local power and status indicators assist operation. Monitoring includes laser optical output power, amplifier status, and module temperature.

Tapped screw and through-hole mounting options support installation within equipment assemblies. The module operates from 12 V DC and supports single or dual redundant power arrangements.

Model: SRY-TX-Y-481
Product Type: Standalone 10 MHz RF over fiber transmitter
Frequency Range: 10 MHz
RF Input Signal Range: 0 to +15 dBm total power
RF Connector Options: SMA 50Ω or BNC 50Ω, female; DC-blocked RF ports
RF Return Loss: 18 dB typ.; 12 dB min.
RF Monitor Coupling: 20 dB ±3 dB below the main signal
Typical Phase Noise: −123 dBc/Hz at 1 Hz offset; −130 dBc/Hz at 10 Hz; −153 dBc/Hz at 1 kHz
Optical Wavelength: 1310 ±10 nm
Laser Type: DFB with two-stage optical isolator
Optical Output Power: +5.5 ±2 dBm
Optical Connector Options: FC/APC or SC/APC; single-mode fiber, APC connectors only
Power Supply: 12 V DC ±1 V; single or dual redundant power
Power Consumption: 6 W typ.
Operating Temperature: −20°C to +65°C; indoor use
Dimensions / Weight: 87.8 × 18 × 150 mm; 0.35 kg

Key Features

• Dedicated optical transport for a supplied 10 MHz reference.

• Compact EMC-sealed standalone housing.

• RF monitor port for signal testing.

• Local power and status indicators.

• Laser, amplifier, and temperature monitoring.

• Tapped screw and through-hole mounting options.

• Supports redundant DC power arrangements.

Compatible optical receiver, reference source, power supplies, and fiber cables are sold separately unless included in the quoted configuration. This module transports a supplied 10 MHz signal; it does not generate a reference independently. Specify RF and optical connector options when requesting a quotation.
