ETL Systems StingRay SRY-RX-Y-482 Standalone 10 MHz RF over Fiber Receiver

ETL Systems StingRay SRY-RX-Y-482 Standalone 10 MHz RF over Fiber Receiver

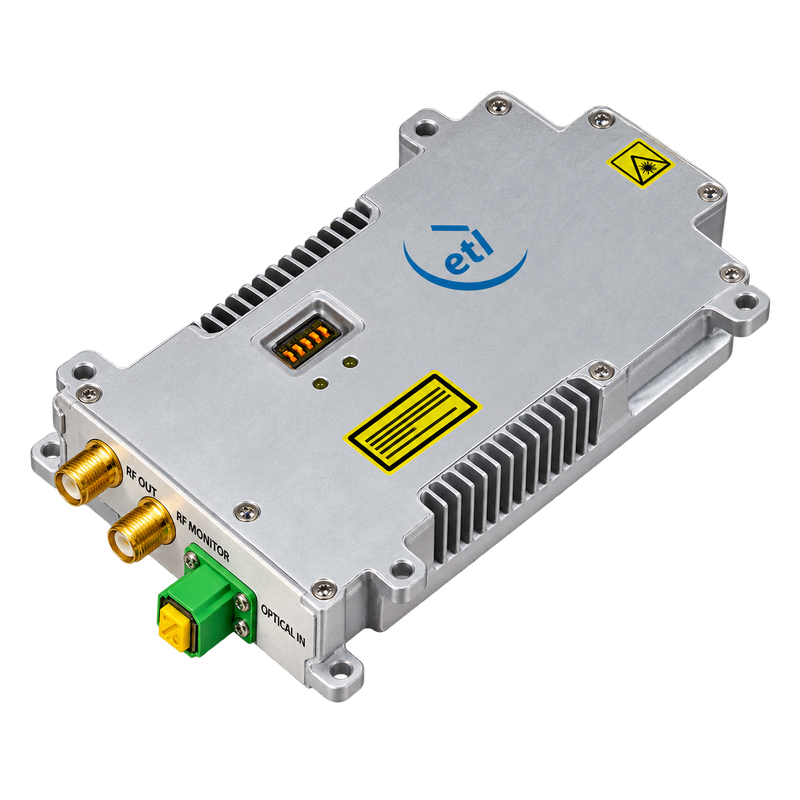

The ETL Systems StingRay SRY-RX-Y-482 converts an incoming optical signal into a 10 MHz reference output for satellite communications and RF reference distribution. It accepts optical wavelengths from 1100–1650 nm, optimized for 1310 nm and 1550 nm, through FC/APC or SC/APC single-mode fiber connections.

The receiver provides an RF output range of 0 to +14 dBm, with local DIP-switch control for output-level settings. An RF monitor port supports signal checks, while power and status indicators assist operation. Monitoring includes optical input power, amplifier status, RF output power, and module temperature.

Its compact EMC-sealed standalone housing includes tapped screw and through-hole mounting options for installation within indoor equipment assemblies.

Model: SRY-RX-Y-482
Product Type: Standalone 10 MHz RF over fiber receiver
Frequency Range: 10 MHz
RF Output Signal Range: 0 to +14 dBm total power
RF Connector Options: SMA 50Ω or BNC 50Ω, female; DC-blocked RF ports
RF Return Loss: 18 dB typ.; 12 dB min.
RF Monitor Coupling: 20 dB ±3 dB below the main signal
Typical Phase Noise: −123 dBc/Hz at 1 Hz offset; −130 dBc/Hz at 10 Hz; −153 dBc/Hz at 1 kHz
Optical Wavelength Range: 1100–1650 nm; optimized for 1310 nm and 1550 nm
Optical Connector Options: FC/APC or SC/APC; single-mode fiber, APC connectors only
Local Control: Five-position DIP switch with output-level settings
Monitoring: Optical input power, amplifier status, RF output power, and temperature
Power Consumption: 4 W typ.
Operating Temperature: −20°C to +60°C; indoor use
Storage Temperature: −40°C to +90°C
Dimensions / Weight: 87.8 × 18 × 150 mm; 0.35 kg

Key Features

• Dedicated optical reception for 10 MHz reference distribution.

• Low phase noise performance.

• Adjustable RF output with local DIP-switch control.

• RF monitor port for signal testing.

• Local power and status indicators.

• Compact EMC-sealed standalone housing.

• Tapped screw and through-hole mounting options.

Compatible optical transmitter, power supply, and fiber cables are sold separately unless included in the quoted configuration. This module recovers a transported 10 MHz reference; it does not generate a reference independently. Specify RF and optical connector options when requesting a quotation.
