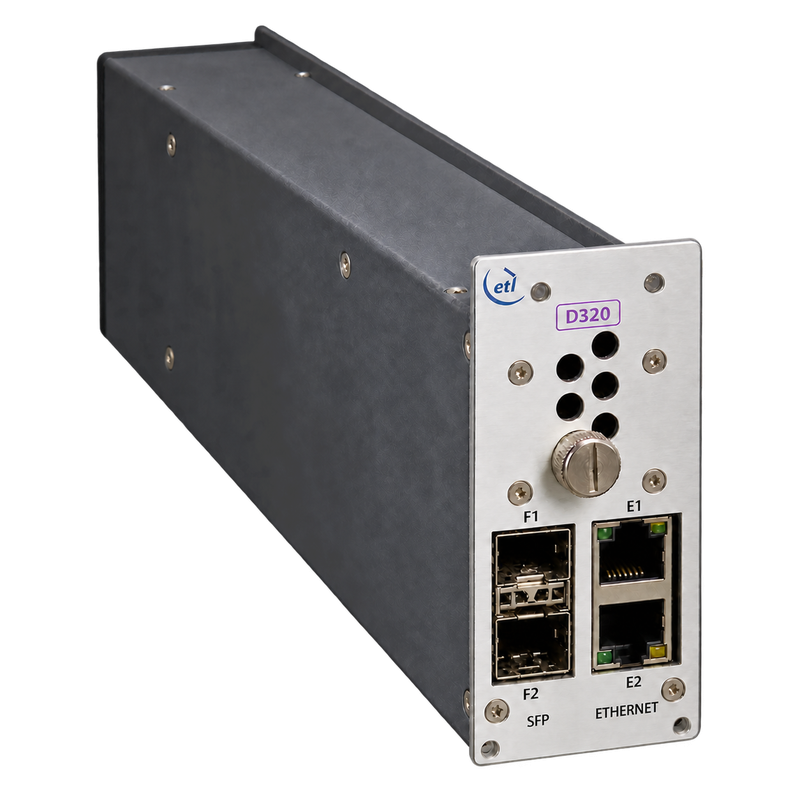

ETL Systems StingRay SRY-G2S-DA-320 Gigabit Ethernet over Fiber Module

ETL Systems StingRay SRY-G2S-DA-320 Gigabit Ethernet over Fiber Module

The ETL Systems StingRay SRY-G2S-DA-320 provides bidirectional Ethernet connectivity between copper and optical interfaces. It features two 10/100/1000BASE-T RJ45 ports and two Gigabit Ethernet SFP slots, interconnected through an unmanaged Ethernet switch.

Standard optical SFP configurations use two fibers per optical link for bidirectional operation. Compatible BiDi SFP modules enable single-fiber links. Optical wavelength selection depends on the specified SFP modules, with LC duplex single-mode connections available for standard configurations.

The double-width module occupies two slots in a compatible GENUS 2U chassis and supports hot swapping. Chassis-based monitoring includes module temperature, with local front-panel and remote access available through the compatible GENUS platform. Outdoor installation requires a suitable ETL ODU enclosure.

Model: SRY-G2S-DA-320
Product Type: Gigabit Ethernet over fiber module
Copper Ethernet Ports: Two RJ45, 10/100/1000BASE-T
Optical Interfaces: Two Gigabit Ethernet SFP slots
Switching: Internal unmanaged Ethernet switch connecting the ports
Standard Fiber Configuration: Two fibers per standard optical SFP link
Single-Fiber Option: Supported with compatible BiDi SFP modules
Optical Connector: LC duplex for standard SFP configurations; other options on request
Fiber Type: Single-mode for the specified optical configuration
Optical Wavelength: Customer-selectable through SFP configuration
Chassis Compatibility: GENUS 2U and compatible ETL ODUs; two chassis slots
Monitoring: Module temperature; chassis-based local and remote access
Operating Temperature: −40°C to +55°C
Storage Temperature: −40°C to +85°C
Humidity: 20–90% non-condensing
Maximum Operating Altitude: 10,000 feet above mean sea level

Key Features

• Two copper Ethernet ports supporting speeds up to 1 Gbps.

• Two SFP slots for configurable optical connectivity.

• Duplex-fiber or compatible BiDi single-fiber operation.

• Integration alongside other compatible GENUS modules.

• Hot-swappable and replaceable module.

• Indoor installation or outdoor deployment within an ETL ODU.

Compatible GENUS chassis, SFP transceivers, and fiber cables are sold separately unless included in the quoted configuration. Specify optical wavelength, link distance, connector type, and duplex or BiDi operation when requesting a quotation. Use non-APC optical connections as specified for the selected SFP; angle-polished connectors are not supported.
