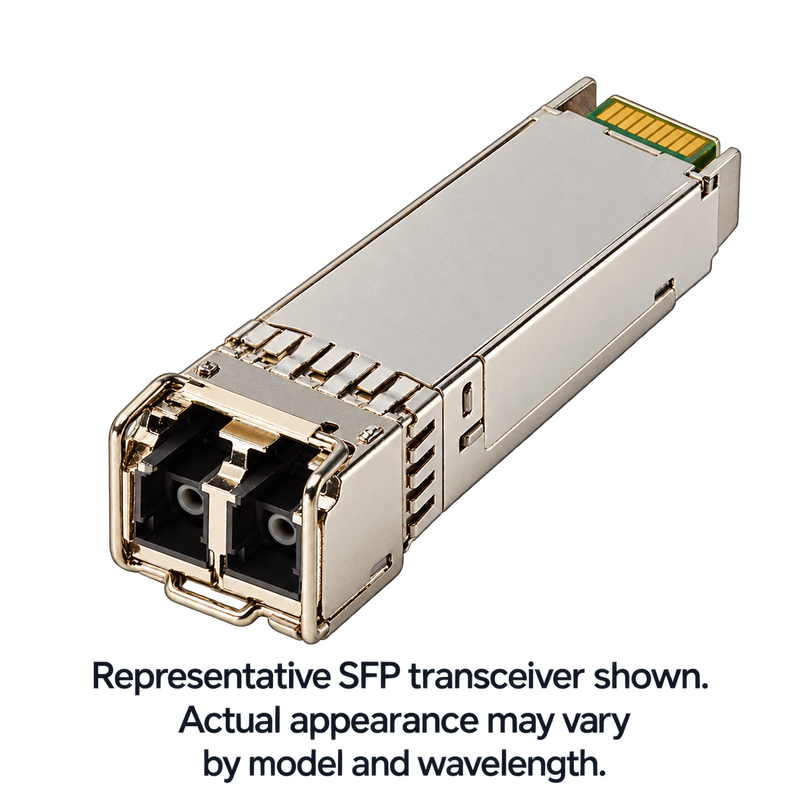

ETL Systems StingRay SRY-SFP-LO1-131-101 1310 nm Gigabit Ethernet SFP Transceiver

ETL Systems StingRay SRY-SFP-LO1-131-101 1310 nm Gigabit Ethernet SFP Transceiver

The ETL Systems StingRay SRY-SFP-LO1-131-101 provides an optical Gigabit Ethernet interface for the SRY-G1S-DA-165 and SRY-G2S-DA-320 Ethernet over fiber modules. These host modules integrate Ethernet connectivity into compatible GENUS chassis.

Operating at 1310 nm, the pluggable SFP uses separate transmit and receive fibers through an LC duplex connection. It supports links up to 10 km, subject to the installed fiber link and optical losses.

Model: SRY-SFP-LO1-131-101
Product Type: Gigabit Ethernet SFP transceiver
Optical Ethernet Standard: 1000BASE-LX10
Data Rate: Gigabit Ethernet, 1 Gbps
Optical Wavelength: 1310 nm
Maximum Link Distance: Up to 10 km
Optical Connector: LC duplex
Fiber Type: Single-mode
Fiber Count: Two; separate TX and RX fibers
Mounting Type: Pluggable SFP
Compatible Host Modules: SRY-G1S-DA-165 and SRY-G2S-DA-320

Key Features

• Adds optical Gigabit Ethernet connectivity to compatible GENUS Ethernet modules.

• Standard 1310 nm operation.

• LC duplex interface for two-fiber links.

• Compact pluggable construction.

Compatible Ethernet host modules, GENUS chassis, and fiber cables are sold separately unless included in the quoted configuration. Specify the required link distance and optical connection requirements when requesting a quotation.
