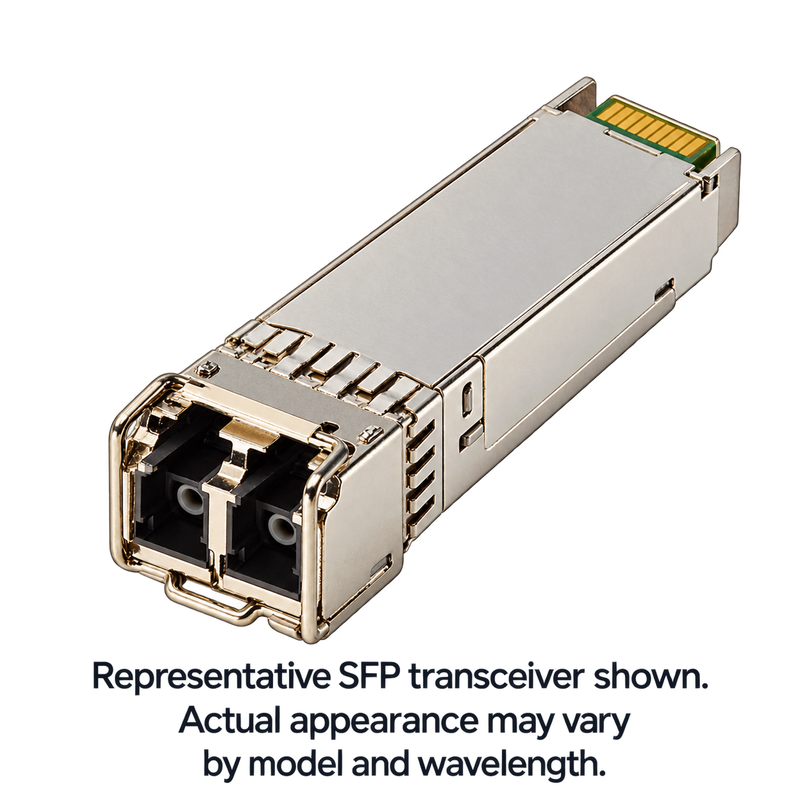

ETL Systems StingRay SRY-SFP-DXX-103 DWDM Gigabit Ethernet SFP Transceiver

ETL Systems StingRay SRY-SFP-DXX-103 DWDM Gigabit Ethernet SFP Transceiver

The ETL Systems StingRay SRY-SFP-DXX-103 provides channel-specific Gigabit Ethernet connectivity for DWDM optical networks. It is compatible with the SRY-G1S-DA-165 and SRY-G2S-DA-320 Ethernet over fiber modules used in GENUS chassis.

The datasheet lists ITU channel options C20 through C60, covering 1529.55–1561.42 nm on a 100 GHz frequency grid. Each SFP operates on its specified channel and uses separate transmit and receive fibers through an LC duplex single-mode connection.

ETL specifies system distribution distances up to 500 km with optical amplifiers. Achieving this distance requires an appropriately engineered DWDM link, including suitable amplification, multiplexing equipment, and verification of total link performance.

Model Series: SRY-SFP-DXX-103
Product Type: DWDM Gigabit Ethernet SFP transceiver
Optical Ethernet Standard: 1000BASE-LX10, as specified by ETL
Data Rate: Gigabit Ethernet, 1 Gbps
ITU Channel Options: C20–C60
Optical Wavelength Range: 1529.55–1561.42 nm; channel-specific
Optical Frequency Range: 192.00–196.00 THz
Channel Spacing: 100 GHz
System Link Distance: Up to 500 km with optical amplifiers and an engineered link
Optical Connector: LC duplex; non-APC
Fiber Type: Single-mode
Fiber Count: Two; separate TX and RX fibers
Mounting Type: Pluggable SFP
Compatible Host Modules: SRY-G1S-DA-165 and SRY-G2S-DA-320

Key Features

• Channel-specific optical interfaces for DWDM Ethernet networks.

• ITU channel selection for wavelength multiplexing.

• Supports engineered long-distance amplified optical systems.

• Integration with compatible GENUS Ethernet host modules.

XX identifies the selected ITU channel; for example, 60 denotes channel C60. Confirm the complete ordering code and system design when requesting a quotation. The 500 km figure applies to an amplified system, not an unamplified SFP link. Compatible host modules, GENUS chassis, optical amplifiers, DWDM mux/demux equipment, and fiber cables are sold separately unless included in the quoted configuration. Angle-polished optical connectors are not supported.
