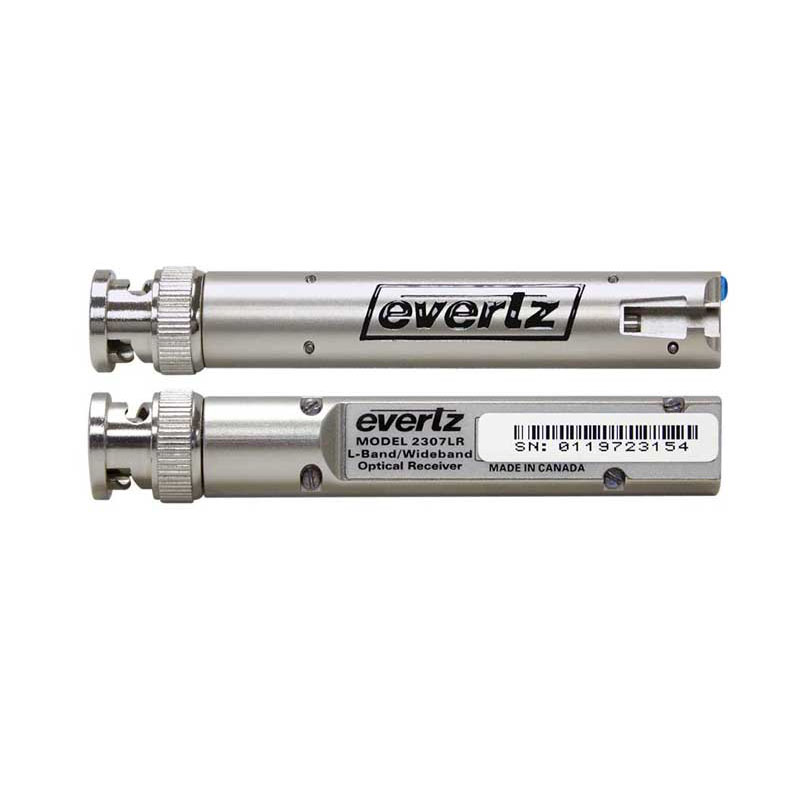

The Evertz 2307LR is an ultra-compact L-band and wideband fiber-optic receiver that converts an optical input into a 75-ohm electrical RF output across the 120 MHz–3 GHz frequency range. Measuring only 3.3 inches long, it connects directly to a device’s BNC input without intermediate coaxial cabling or rack-mounted optical receiver hardware.

The 2307LR is powered through its DC-biased RF output connector, allowing direct integration with Evertz XRF routers, IRDs, distribution amplifiers and other equipment providing LNB voltage at the RF input. Its wide bandwidth supports satellite L-band, over-the-air DTV and other broadband RF applications.

A tri-color LED indicates optical input strength, while protocol-independent operation supports any modulation format. The 2307LR is compatible with Evertz 2408LT, 7708LT and 7807LT-2 series fiber-optic transmitters.

Specifications:

Product Type: Miniature L-Band/Wideband Fiber-Optic Receiver
Manufacturer: Evertz
Model: 2307LR
Optical Inputs: 1
RF Outputs: 1
Frequency Range: 120 MHz–3 GHz
RF Impedance: 75 Ohms
RF Output Connector: BNC
RF Connector Standard: IEC 61169-8 Annex A
RF Return Loss, 120 MHz–2.3 GHz: Greater Than 15 dB
RF Return Loss, 2.3–3 GHz: Greater Than 12 dB
Output IP3: +40 dBm
Link Gain: -6 dB at 0 dBm Optical Input and 0 dB Transmitter Gain
Optical Connector: Female LC/UPC
Optical Wavelength Range: 1270–1610 nm
Maximum Optical Input Power: +3 dBm
Optical Sensitivity: -14 dBm at 35 dB C/N on a 36 MHz Carrier
Optical Strength Indicator: Tri-Color LED
DC Input Voltage: 13 VDC Nominal
DC Input Range: 9–21 VDC
DC Input Connector: BNC RF Output Connector
Power Consumption: Less Than 1 W
Protocol Compatibility: Protocol Independent
Compatible Transmitters: Evertz 2408LT, 7708LT and 7807LT-2 Series
Installation: Direct Connection to DC-Biased RF Input
Rack Space Required: None
Dimensions: 3.3 in. L × 0.57 in. Diameter
Metric Dimensions: 84 mm L × 15 mm Diameter
