Evertz 2408LT L-Band/Wideband Fiber-Optic Transmitter with SmartMON, Up to 3 GHz

Evertz 2408LT L-Band/Wideband Fiber-Optic Transmitter with SmartMON, Up to 3 GHz

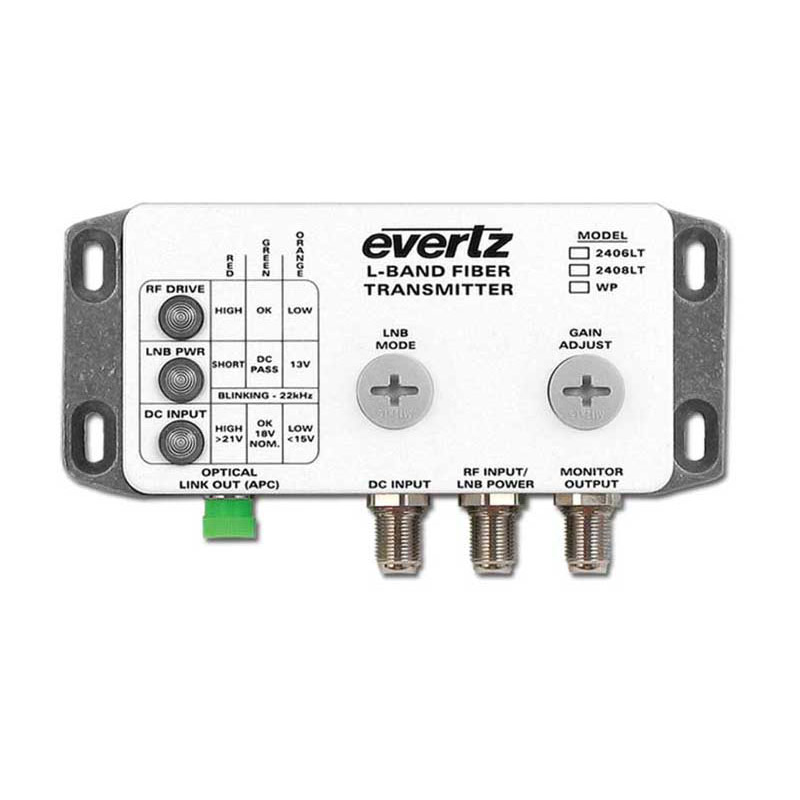

The Evertz 2408LT is a compact L-band and wideband fiber-optic transmitter that converts one coaxial RF input into one optical output for transmission over fiber. Depending on the selected laser option, it supports frequency ranges from 88 MHz to 3 GHz for satellite L-band, over-the-air DTV, GPS and other broadband RF signals.

Designed for installation on or near an antenna, the 2408LT minimizes coaxial cable length to preserve carrier-to-noise performance. The optional 2408LT-WP weatherproof version provides IP65 dust and water protection for outdoor mounting without a secondary enclosure.

Manual gain control and automatic gain control compensate for RF input-level variations. The transmitter also provides an RF monitor output, selectable LNB power, 22 kHz tone, current monitoring and short-circuit protection. SmartMON relays RF level, LNB current, power-supply status and other operating data through the optical output for remote SNMP and VistaLINK monitoring when used with a compatible SmartMON receiver.

Specifications:

Product Type: L-Band/Wideband Fiber-Optic Transmitter
Manufacturer: Evertz
Product Series: 2408LT
RF Inputs: 1
Optical Outputs: 1
Standard RF Input Connector: 75-Ohm Type F
Optional RF Input Connector: 50-Ohm BNC
RF Input Impedance: 75 Ohms; 50 Ohms Optional
Frequency Range, 1310 nm DFB Laser: 850 MHz–3 GHz
Frequency Range, CWDM Laser: 88 MHz–3 GHz
RF Return Loss, 88–500 MHz: Greater Than 11 dB
RF Return Loss, 500 MHz–3 GHz: Greater Than 15 dB
RF Input Power Range: -60 to -10 dBm
Manual Gain Range: +2 to +30 dB
Gain Step Size: 2 dB
AGC Hold Range: -38 to -8 dBm ±2 dB
Input IP3: +10 dBm
IMD: Less Than -55 dBc at -15 dBm Input and Minimum Gain
RF Monitor Outputs: 1
RF Monitor Connector: Type F; 50-Ohm BNC Optional
RF Monitor Output Level: Within -2 dB of Input Signal
Optical Connector: Female FC/APC
Standard Optical Wavelength: 1310 nm DFB
CWDM Wavelength Options: 1270–1610 nm
Optical Output Power: +2 dBm
LNB Power Modes: DC Pass-Through, 13.5 VDC or Off
LNB Current: 500 mA
LNB Protection: Current-Limited Short-Circuit Protection
22 kHz Tone: Selectable On or Off
LNB Current Monitoring: Yes
Gain Control: Manual or AGC
Status Indicators: RF Drive, LNB Voltage and DC Input Level
Remote Monitoring: SmartMON, SNMP and VistaLINK
Protocol Compatibility: Protocol Independent
System Flatness, 950–2150 MHz: ±1.5 dB
System Flatness, 88 MHz–3 GHz: ±2 dB
System Flatness over Any 36 MHz up to 2.3 GHz: ±0.25 dB
Gain Variation over Temperature: ±2 dB
Standard DC Input: 18 VDC Nominal
Standard DC Input Range: 11–20 VDC
Power Consumption: 2 W Maximum, Excluding LNB Power
DC Input Connector: Type F
Weather Protection: IP65 on 2408LT-WP Versions
Operating Temperature, 1310 nm: -20°C to +70°C
Operating Temperature, CWDM: -20°C to +60°C
Dimensions: 1.2 in. H × 2.4 in. W × 5.4 in. L
Laser Classification: Class 1
Compliance: FCC Part 15 Class A, EU EMC, CSA, UL and IEC

Available Models:

2408LT13: 1310 nm DFB Laser, 75-Ohm Type F
2408LT13-WP: Weatherproof 1310 nm DFB Laser, Type F
2408LT13-B50: 1310 nm DFB Laser, 50-Ohm BNC
2408LT13-WP-B50: Weatherproof 1310 nm DFB Laser, 50-Ohm BNC
2408LT27–61: CWDM DFB Laser Options
2408LT27–61-WP: Weatherproof CWDM DFB Laser Options
2408LT27–61-B50: CWDM DFB Laser with 50-Ohm BNC
2408LT27–61-WP-B50: Weatherproof CWDM DFB Laser with 50-Ohm BNC

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
