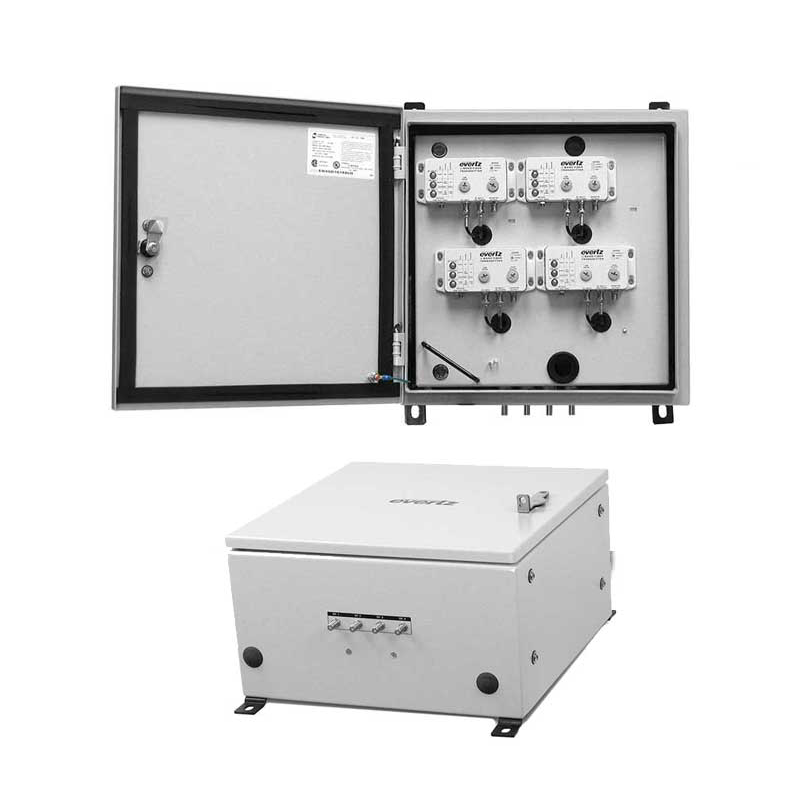

The Evertz 2400ODU is a pre-integrated outdoor RF-over-fiber transmission system designed to transport up to four satellite L-band or wideband RF signals over individual optical fibers. Its weather-sealed enclosure accommodates one to four Evertz 2408LT fiber-optic transmitters and a 2400PSU-8 power supply.

Designed for installation directly on or near an antenna structure, the 2400ODU minimizes coaxial cable length to preserve signal quality and carrier-to-noise performance. Each transmitter provides an RF monitor output, selectable LNB power, 22 kHz tone and short-circuit protection. SmartMON-equipped transmitters support remote status monitoring without requiring a separate data connection.

The enclosure includes RF-input lightning protection, redundant power capability, conduit knockouts and a durable powder-coated finish. Transmitter modules are hot-swappable and field-installable, allowing systems to be expanded from one to four RF-over-fiber channels.

Specifications:

Product Type: Outdoor Integrated RF-Over-Fiber Transmission System
Manufacturer: Evertz
Product Series: 2400
Model: 2400ODU
Installed Transmitters: 1 to 4 Evertz 2408LT Modules
RF Inputs: 1 to 4
Optical Outputs: 1 to 4
Standard RF Connectors: 75-Ohm Type F
Optional RF Connectors: 50-Ohm Type N
Frequency Range, 1310 nm FP Laser: 850 MHz–3 GHz
Frequency Range, CWDM DFB Laser: 20 MHz–3 GHz
RF Input Power Range: -50 to -10 dBm
Optical Connectors: Female FC/APC
Standard Optical Wavelength: 1310 nm
Optical Output Power: +2 dBm per Channel
LNB Power Voltage: 18 VDC, 13.5 VDC or Off
LNB Current: 500 mA per Channel
LNB Protection: Current-Limited Short-Circuit Protection
22 kHz Tone: Selectable On or Off
RF Monitor Output: One per Transmitter
Remote Monitoring: SmartMON
RF Input Lightning Protection: Included
Power Supply: Evertz 2400PSU-8
Power Input Sources: Single or Dual Protected Inputs
Standard AC Connection: Direct Wiring to Duplex NEMA 5-15R Receptacle
IEC Power Option: Dual IEC 320 Male Input Connectors
Power Requirements: 100–240 VAC, 47–63 Hz, Autoranging
Maximum Input Current: 1 A per AC Input
Transmitter Installation: Field-Installable and Hot-Swappable
Enclosure: Weather-Sealed Outdoor Cabinet
Finish: RAL 7035 Textured Light Gray Powder Coat
Conduit Knockouts: Two 3/4-Inch
Operating Temperature: -20°C to +50°C
Dimensions: 16 in. H × 16 in. W × 9 in. D
Metric Dimensions: 407 mm H × 407 mm W × 229 mm D

Available Configurations:

2400ODU-1T: One 2408LT13 Transmitter
2400ODU-2T: Two 2408LT13 Transmitters
2400ODU-3T: Three 2408LT13 Transmitters
2400ODU-4T: Four 2408LT13 Transmitters
2400ODU-1T-IEC: One Transmitter with Dual IEC 320 Power Inputs
2400ODU-2T-IEC: Two Transmitters with Dual IEC 320 Power Inputs
2400ODU-3T-IEC: Three Transmitters with Dual IEC 320 Power Inputs
2400ODU-4T-IEC: Four Transmitters with Dual IEC 320 Power Inputs
