Evertz 7800FR 15-Slot 3RU Multiframe Chassis

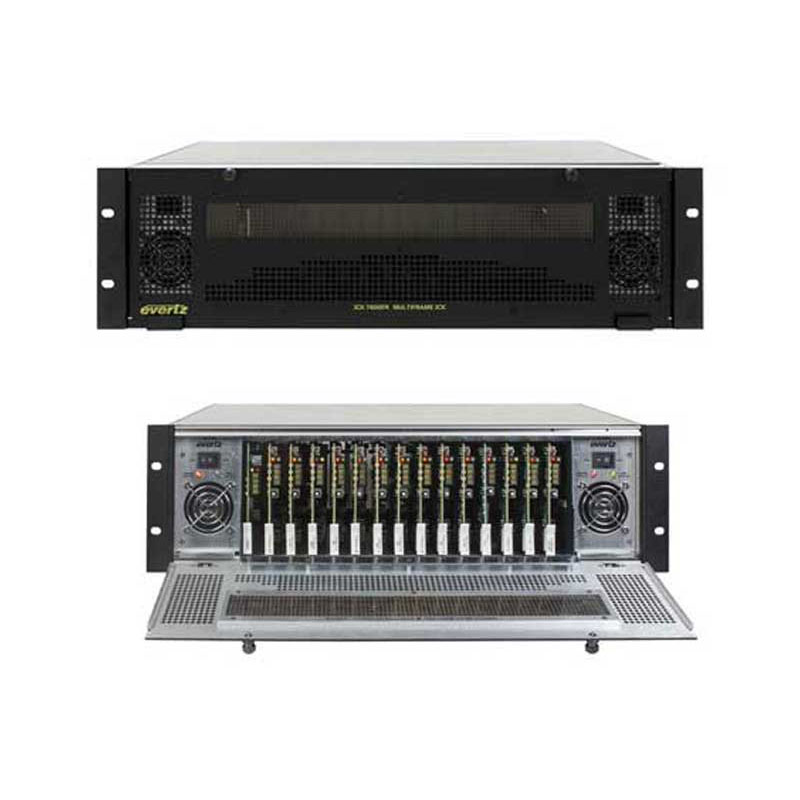

The Evertz 7800FR is a high-density 3RU multiframe chassis that accommodates up to 15 single-slot processing modules in any combination. It supports simultaneous RF, fiber, ASI, IP, 3G and HD/SD signal processing, providing a flexible platform that can expand as facility requirements change.
Dual frame genlock distributes a stable reference signal across the internal bus to installed modules, reducing the need for external genlock distribution. The 7800FR also provides global frame-status alarming, front-extractable modules and power supplies, and front-to-rear cooling with rear-mounted fans.
Compatible with Evertz 7800 and 7700 series processing modules and companion rear plates, the chassis supports SNMP monitoring through an optional 7700FC or 7800FC frame controller. AC, DC and hybrid AC/DC power configurations are available, with optional redundant power supplies and separate inlets.
Specifications:
Product Type: Multiframe Chassis
Manufacturer: Evertz
Product Series: 7800 Series
Model: 7800FR
Mechanical Format: 3RU Rackmount
Rack Width: 19 Inches
Module Capacity: Up to 15 Single-Slot Modules
Supported Signals: RF, Fiber, ASI, IP, 3G and HD/SD
Module Compatibility: Evertz 7800 and 7700 Series
Frame Genlock: Dual Internal Reference Distribution
Monitoring and Control: SNMP VistaLINK PRO via 7700FC or 7800FC
Frame Alarm: Contact-Closure Failure Alarm
Cooling: Front-to-Rear Airflow with Rear-Mounted Fans
Modules: Front Extractable
Power Supplies: Front Extractable
Maximum Frame Power: 360 W
Maximum Power per Slot: 24 W
Power Configurations: AC, DC or Hybrid AC/DC
AC Input Range: 100–240 VAC, 50/60 Hz
DC Input Range: 36–60 VDC
Standard Power Supply: Single
Redundant Power Supply: Optional
Power Inlets: Separate Inlet per Power Supply
Maximum DC Operating Current: 11 A at 48 VDC
Empty Chassis Weight: 17.4 lb.
Empty 48 VDC Chassis Weight: 17.5 lb.
Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
