Evertz 7801FR 4-Slot 1RU Multiframe Chassis

Evertz 7801FR 4-Slot 1RU Multiframe Chassis

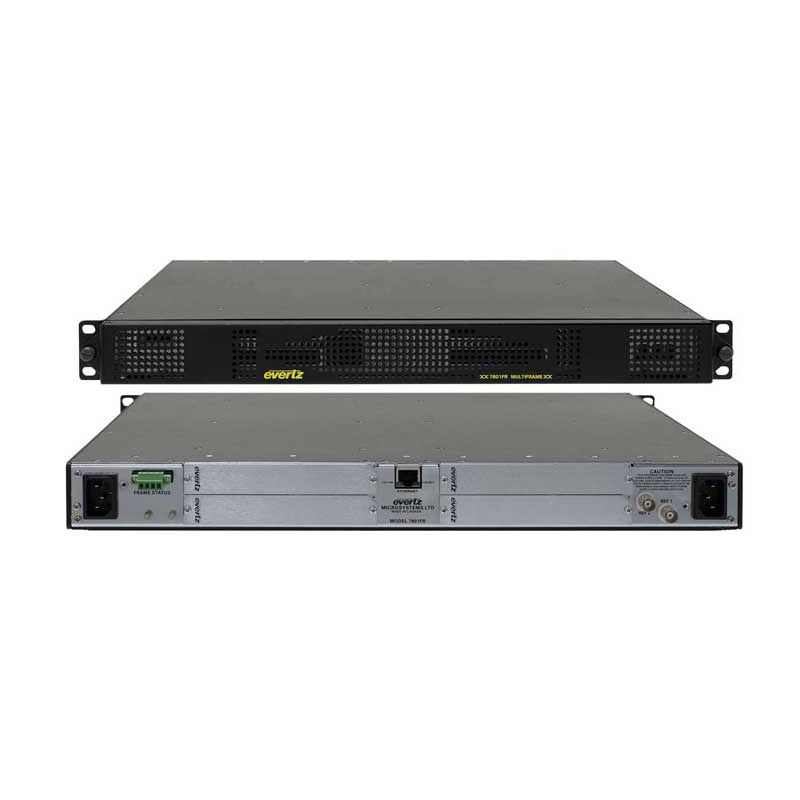

The Evertz 7801FR is a compact 1RU multiframe chassis that accommodates up to four single-slot or two dual-slot processing modules in any combination. It supports simultaneous RF, fiber, ASI, IP, 3G and HD/SD processing for broadcast, telecommunications and professional signal-management systems.

Dual frame genlock distributes a stable reference signal across the internal bus to installed modules, helping reduce external genlock-distribution requirements. The 7801FR also offers global frame-status alarming, front-extractable modules, power supplies and fans, and front-to-side airflow through side-mounted fans.

The chassis is backward compatible with Evertz 7800 and 7700 series modules and companion rear plates. True SNMP VistaLINK PRO control is available through the optional 7801FC frame controller. AC, DC and hybrid AC/DC power configurations are supported, with an optional second power supply for redundancy.

Specifications:

Product Type: Compact Multiframe Chassis
Manufacturer: Evertz
Product Series: 7800 Series
Model: 7801FR
Mechanical Format: 1RU Rackmount
Rack Width: 19 Inches
Module Capacity: Up to 4 Single-Slot or 2 Dual-Slot Modules
Supported Signals: RF, Fiber, ASI, IP, 3G and HD/SD
Module Compatibility: Evertz 7800 and 7700 Series
Frame Genlock: Dual Internal Reference Distribution
Monitoring and Control: SNMP VistaLINK PRO via 7801FC
Frame Alarm: Contact-Closure Failure Alarm
Cooling: Front-to-Side Airflow with Side-Mounted Fans
Modules: Front Extractable
Power Supplies and Fans: Front Extractable
Maximum Frame Power: 125 W
Maximum Power per Slot: 24 W
Power Configurations: AC, DC or Hybrid AC/DC
AC Input Range: 100–240 VAC, 50/60 Hz
DC Input Range: 36–60 VDC
Standard Power Supply: Single
Redundant Power Supply: Optional
Power Inlets: Separate Inlet per Power Supply
Maximum AC Operating Current: 1.3 A at 100 VAC, 60 Hz; 0.55 A at 240 VAC, 50 Hz
Empty Chassis Weight: 10 lb.

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
