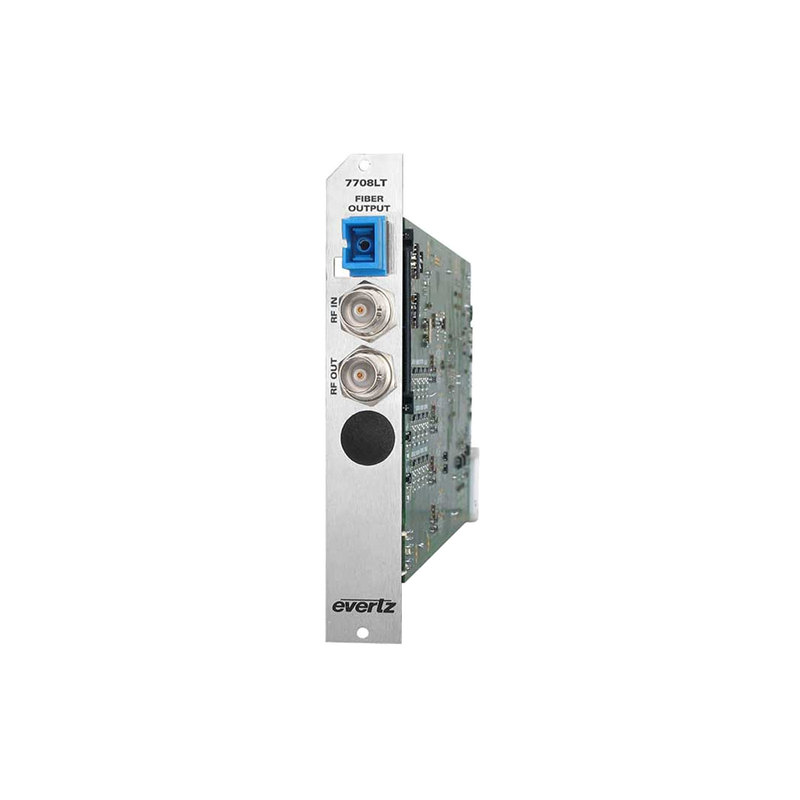

The Evertz 7708LT is a wideband RF-over-fiber transmitter that converts one 88–3000 MHz coaxial RF input into an optical signal for transmission over fiber. Its protocol-independent design transports extended L-band, off-air DTV and other RF signals regardless of modulation format.

The 7708LT provides manual gain control and automatic gain control, with an adjustable 0 to +30 dB range in 0.5 dB steps. A dedicated RF monitor output supports satellite signal peaking or additional signal distribution. Selectable 13/18 VDC LNB power, 22 kHz tone control, current monitoring and short-circuit protection are also included.

SmartMON technology relays incoming RF strength, LNB current and other operating data over the fiber link to a compatible receiver, eliminating the need for a separate monitoring connection. When installed with an appropriate frame controller, VistaLINK PRO provides SNMP-based remote monitoring and control.

Specifications:

Product Type: Wideband RF-Over-Fiber Transmitter
Manufacturer: Evertz
Product Series: 7700 Series
Model: 7708LT
RF Inputs: 1
Optical Outputs: 1
RF Monitor Outputs: 1
Frequency Range: 88–3000 MHz
Supported Signals: Extended L-Band, Off-Air DTV and Other RF Signals
Modulation Compatibility: Protocol Independent
Input Impedance: 75 Ohms Standard; 50 Ohms Optional
Output Impedance: 75 Ohms Standard; 50 Ohms Optional
RF Connector: 75-Ohm BNC Standard
Optional RF Connectors: Type F or 50-Ohm SMA
Input Power Range: -60 to -10 dBm
Gain Range: 0 to +30 dB
Gain Adjustment: 0.5 dB Steps
Gain Modes: Manual or Automatic Gain Control
Input IP3: +10 dBm
IMD: Less Than -55 dBc at -15 dBm Input and 0 dB Gain
Input Return Loss, 120 MHz–2.3 GHz: Greater Than 14 dB
Input Return Loss, 2.3–3 GHz: Greater Than 12 dB
RF Monitor Output Level: Within -2 dB of Input Signal
RF Monitor Return Loss: Greater Than 15 dB
LNB Voltage: Selectable 13 VDC, 18 VDC or Off
LNB Current: 400 mA
LNB Protection: Current Limiting and Short-Circuit Protection
LNB Local Oscillator Control: Selectable 22 kHz Tone
Monitoring Technology: SmartMON
Remote Monitoring and Control: SNMP VistaLINK PRO
Standard Optical Wavelength: 1310 nm DFB
CWDM Wavelengths: 1270–1610 nm
DWDM Wavelength Range: C-Band, ITU-T G.694.1 Compliant
Standard 1310 nm Optical Power: +2 dBm
CWDM Optical Power: +2 dBm
High-Power DWDM Optical Power: +11 dBm
Optical Connector Options: SC/UPC, ST/UPC, FC/UPC, SC/APC or FC/APC
System Frequency Response, 950–2150 MHz: ±1.5 dB
System Frequency Response, 120 MHz–3 GHz: ±2 dB with 7708LRA
Frequency Response over Any 36 MHz: ±0.25 dB to 2.3 GHz
Power Requirement: +12 VDC
Power Consumption: 6 W Maximum, Excluding LNB Power
Module Width: One Card Slot
Compatible Frames: 350FR, 7700FR-C, 7800FR, 7801FR and 7701FR
Standalone Enclosure: S7701FR
Laser Classification: Class 1 Laser Product
EMI/RFI Compliance: FCC Part 15 Class A and EU EMC Directive
