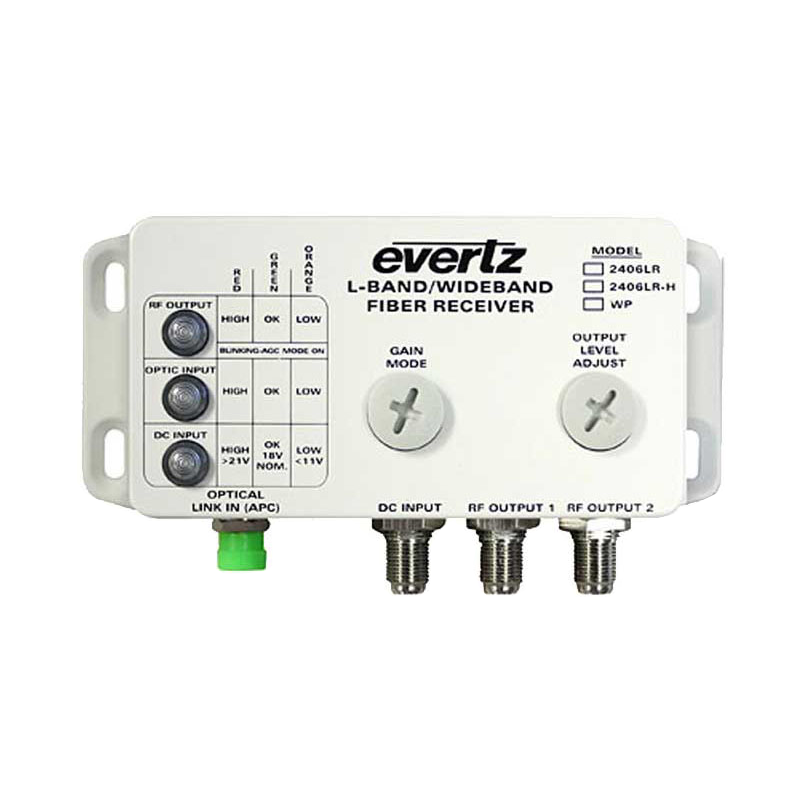

The Evertz 2406LR is a compact, temperature-hardened RF-over-fiber receiver that converts one optical input into two equal-power coaxial RF outputs. The standard 2406LR covers 88 MHz–3 GHz, while the high-sensitivity 2406LR-H covers 88 MHz–2.3 GHz for longer fiber links.

Designed for installation on or near an antenna, the standalone receiver supports satellite L-band, off-air DTV, VSAT, portable antenna and other wideband RF applications. Its protocol-independent design transports video, audio and data signals regardless of modulation format.

Manual gain control provides fixed output adjustment, while AGC automatically maintains a selected output level as optical conditions change. Tri-color LEDs indicate optical input, DC input and RF output status. The optional 2406LR-WP weatherproof version provides IP65 protection for direct outdoor mounting without a secondary enclosure.

When paired with an Evertz 2408LT transmitter, the 2406LR can form a bidirectional fiber link for VSAT and similar systems. Dedicated 10 MHz versions are also available for reference-frequency transport and GPS applications.

Specifications:

Product Type: Standalone Wideband RF-Over-Fiber Receiver
Manufacturer: Evertz
Product Series: 2406 Series
Models: 2406LR and 2406LR-H
Optical Inputs: 1
RF Outputs: 2 Equal-Power Outputs
2406LR Frequency Range: 88 MHz–3 GHz
2406LR-H Frequency Range: 88 MHz–2.3 GHz
Supported Applications: L-Band, Off-Air DTV, VSAT, GPS and Wideband RF
Modulation Compatibility: Protocol Independent
Standard RF Connector: 75-Ohm Type F
Optional RF Connectors: 50-Ohm BNC or SMA
Output Return Loss, 88 MHz–2.3 GHz: Greater Than 15 dB
Output Return Loss, 2.3–3 GHz: Greater Than 12 dB
Output IP3: +28 dBm
IMD: Less Than -55 dBc at -3 dBm Output and 25 dB Gain
Gain-Control Modes: Manual and Automatic
Available Gain: -6 to +24 dB
Gain Adjustment: 2 dB Steps
Manual Output Range: -60 to 0 dBm, Depending on Signal Level, Gain and Optical Loss
AGC Output Range: Adjustable from -40 to -10 dBm
Optical Connector: Female FC/APC
Optical Wavelength Range: 1270–1610 nm
2406LR Maximum Optical Input: +3 dBm
2406LR-H Maximum Optical Input: -7 dBm
2406LR Optical Sensitivity: -14 dBm at 35 dB C/N on a 36 MHz Carrier
2406LR-H Optical Sensitivity: -20 dBm at 35 dB C/N on a 36 MHz Carrier
Local Status Indicators: Optical Input, DC Input and RF Output
Nominal Power Input: 18 VDC
DC Input Range: 11–20 VDC
DC Power Connector: Type F
Optional AC Power Supply: 100–240 VAC Input to 18 VDC Output
Multi-Unit Power Option: Evertz 2400PSUA-8 Eight-Channel Power Supply
Operating Temperature: -30°C to +75°C
Weatherproof Option: IP65 2406LR-WP
Dimensions: 2.4 in. W × 1.2 in. H × 5.4 in. L
Metric Dimensions: 61 × 31 × 138 mm, Including Flanges
Safety Compliance: CSA, UL 62368-1 and IEC 62368-1
EMI/RFI Compliance: FCC Part 15 Subpart B, EN 55022 and ICES-003
Compatible Transmitters: Evertz 2408LT and 7708LT Series
