Peak P7000 Combined IF / L-Band Frequency Converter

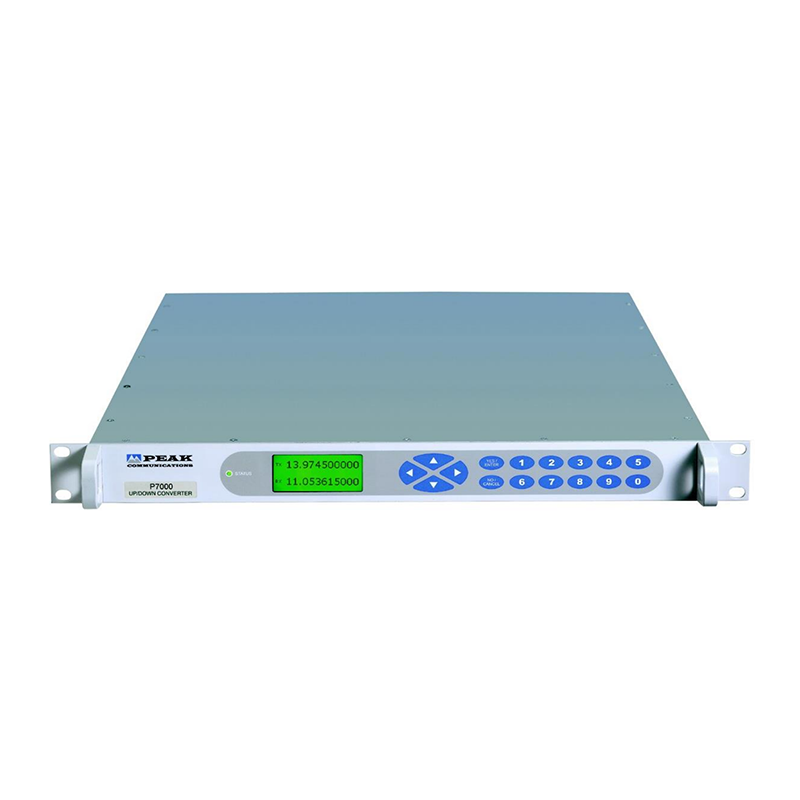

Peak Communications P7000 Combined IF / L-Band Frequency Converter

Peak Communications P7000 Combined IF / L-Band Frequency Converter provides high-performance bidirectional frequency conversion between L-Band and 70 MHz or 140 MHz IF for satellite communication systems. Combining an IF-to-L-Band up converter and an L-Band-to-IF down converter in a single 1U rack-mounted unit, the P7000 delivers exceptional phase noise, frequency stability, and low BER performance for high-order modulation and digital TV applications. Compliant with IESS-308/309, the P7000 features automatic external 5 MHz or 10 MHz reference locking, integrated BUC/LNB reference and DC outputs, built-in 1+1 and 2+1 redundancy control, and optional Ethernet/SNMP management, making it ideal for teleport, gateway, broadcast, military, and VSAT earth station applications.

Key Features

• Combined IF and L-Band frequency converter in a 19-inch 1U rack-mounted chassis

• Bidirectional conversion between L-Band and 70 MHz or 140 MHz IF

• Compliant with IESS-308/309, Intelsat IBS, and Eutelsat SMS requirements

• Suitable for high-order modulation schemes and digital TV applications

• Automatic external 5 MHz / 10 MHz reference detection and internal backup reference

• Integrated 10 MHz reference and DC power outputs for BUCs and BDCs

• Software-selectable spectrum inversion on the down converter

• Built-in 1+1 and 2+1 CANBUS® redundancy controller

• Optional Ethernet, embedded web server, and SNMP management

• Optional L-Band or IF monitoring ports

• Ideal for teleport, gateway, broadcast, military, and VSAT applications
