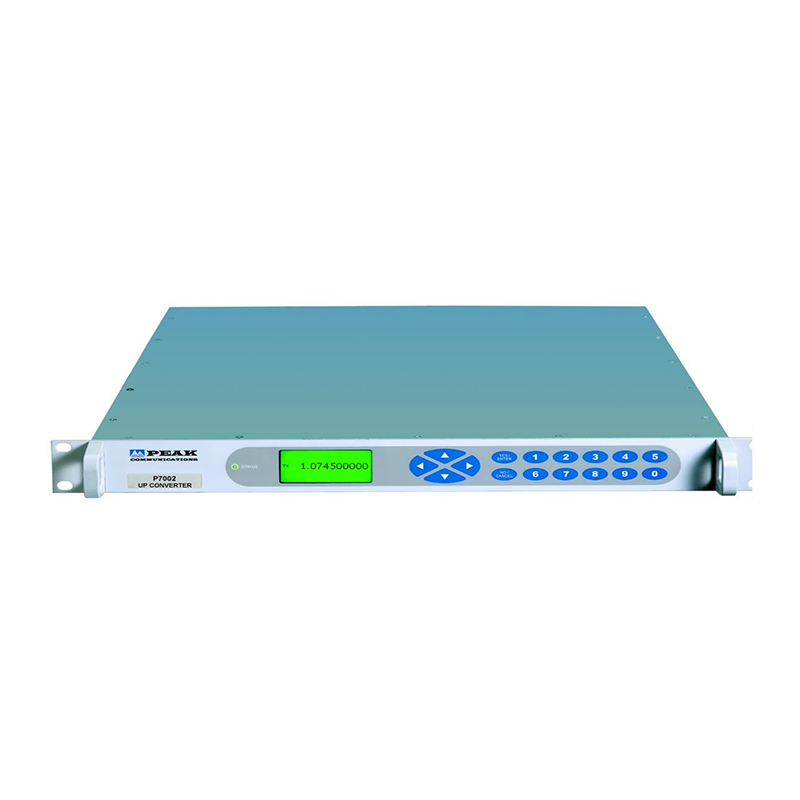

Peak P7002 70/140 MHz IF to L-Band Up Converter

Peak Communications P7002 70/140 MHz IF to L-Band Up Converter

Peak Communications P7002 IF to L-Band Up Converter provides fully synthesized frequency conversion from 70 MHz or 140 MHz IF to L-Band for professional satellite communication systems. The P7002 supports 70 MHz, 140 MHz, or switchable 70/140 MHz IF inputs with L-Band outputs up to 2000 MHz. It features excellent phase noise and frequency stability, IESS-308/309 compliance, automatic external reference locking, integrated BUC power and 10 MHz reference, and built-in redundancy control.

Key Features:

• Fully synthesized IF to L-Band up converter

• Standard 70 ±18 MHz IF input

• Optional 140 ±36 MHz IF input

• Optional switchable 70/140 MHz IF input

• Standard L-Band output: 950–1525 MHz

• Optional outputs to 1700, 1750, or 2000 MHz

• Compliant with IESS-308/309

• Suitable for high-order modulation schemes above 100 Mbit/s

• 0–30 dB attenuation in 0.1 dB steps

• Excellent phase noise and frequency stability

• Automatic external 5 or 10 MHz reference detection and locking

• Integrated 10 MHz reference and +22.5 VDC BUC drive

• L-Band monitor output

• Integrated 1+1 and 2+1 CANBUS® redundancy control

• N+1 redundancy systems available

• Optional Ethernet, embedded web server and SNMP

• Optional redundant power supplies
